Remove/install rotary light switch - AR54.25-P-3250TX
MODEL 219.3
MODIFICATION NOTES
| 5.7.06 | "Disconnect/connect battery ground line" removed |
| Remove/install | |||
| Notes on avoiding damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||

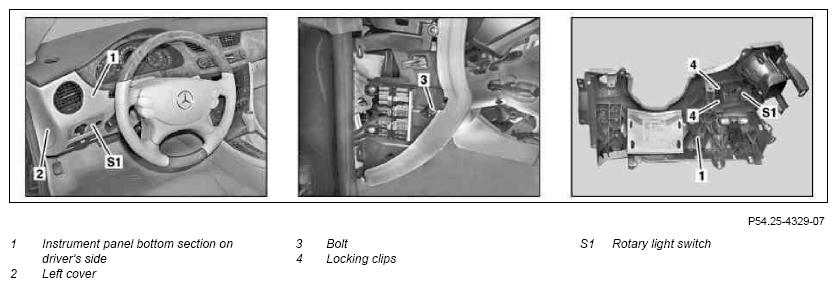

| 1 | Unclip left cover (2) from instrument panel with mounting wedge | Figure | |
| 2 | Unscrew bolt (3). | ||
| 3 | Remove bottom section of instrument panel (1) on driver's side | AR68.10-P-1505TX | |
| 4 | Press locking clips (4) of rotary light switch (S1) and remove rotary light switch (S1) from instrument panel bottom section on driver's side (1) | ||
| 5 | Install in the reverse order | ||
| 6 | Carry out function check of rotary light switch (S1) |
