Remove/install rear prefuse box - AR54.15-P-1340TX

MODEL 219.3

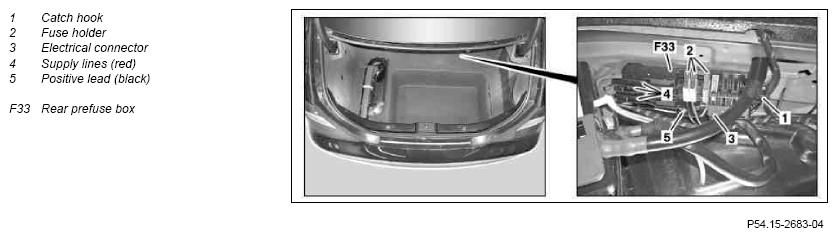

Fig 1: Identifying Rear Pre-Fuse Box Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Disconnect battery ground cable		AR54.10-P-0003TX
2	Unclip catch hook (1) and remove rear prefuse box (F33)
3	Unclip fuse holder (2) on the rear prefuse box (F33)	Number of fuse holders (2) depending on equipment. Pay attention to the color codings of the fuse holder (2).
4	Detach electrical connector (3) on the rear prefuse box (F33)	Number of electrical connectors (3) according to equipment. Pay attention to color codings of the electrical connectors (3). Modify fuses of the electrical connectors (3) when replacing the rear prefuse box (F33).
5	Detach supply lines (red) (4) on the rear prefuse box (F33), mark and place the supply line (red) (4) to one side	The number of supply lines (red) (4) if equipped. Observe markings on the supply lines (red) (4).
			*BA54.10-P-1008-01C
6	Unscrew positive line (black) (6) on the rear prefuse box (F33) and remove positive line (black) (6)		*BA54.10-P-1022-01C
7	Install in the reverse order

BATTERY

Number	Designation			Model 219.3
BA54.10-P-1008-01C	Nut, line connection to rear prefuse box	M6	Nm	7
		M8	Nm	-
BA54.10-P-1022-01C	Nut, line connection to circuit 30 on rear prefuse box	M8	Nm	21
