Remove/install left front SAM control unit with fuse and relay box - AR54.21-P-1260TX

MODEL 219.3 up to 31.5.06

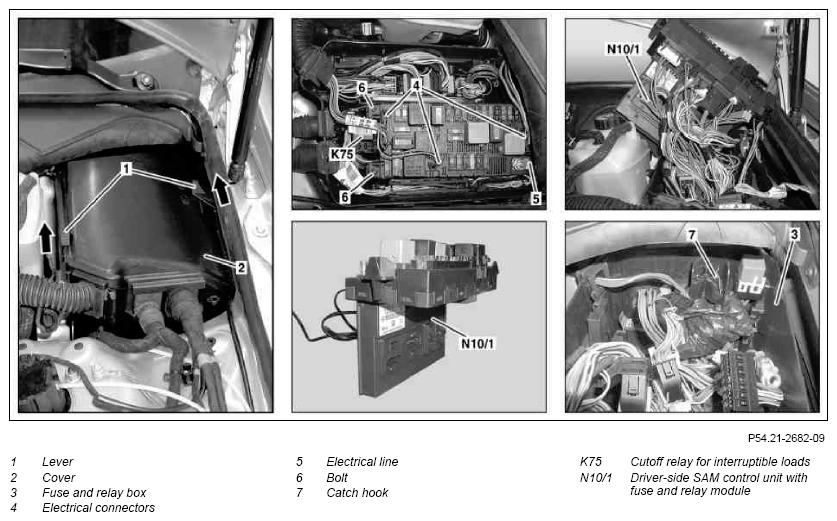

Fig 1: Identifying Left Front SAM Control Unit Remove/Install Components
G10768161Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
NOTES Notes on avoiding damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
1.1 Temporarily store basic data from driver-side SAM control unit with fuse and relay module (N10/1) in STAR DIAGNOSIS When replacing driver-side SAM control unit with fuse and relay module (N10/1).
INSTALLATION IMPORTANT transfer temporarily stored basic data to the new driver-side SAM control unit with fuse and relay module (N10/1).

REFER TO SELF-DIAGNOSTIC SYSTEMS Connect STAR DIAGNOSIS and read out fault memory   AD00.00-P-2000-04TX
STAR DIAGNOSIS, diagnosis system *WH58.30-Z-1048-13A
2 Disconnect battery ground cable   AR54.10-P-0003TX
3 Open engine hood and move to vertical position   AR88.40-P-1000TX
4 Release lever (1) in direction of arrow and remove cover (2) from fuse and relay box (3) INSTALLING Make sure that the cover (2) is seated and locked correctly as the ingress of moisture will damage electrical and electronic components.
5 Separate electrical connectors (4)
6 Detach electrical line (5) from driver-side SAM control unit with fuse and relay module (N10/1)
7 Remove bolts (6)
8 Remove driver-side SAM control unit with fuse and relay module (N10/1) from the fuse and relay box (3) until the electrical connectors on the bottom side of the driver-side SAM control unit with fuse and relay module (N10/1) are accessible INSTALLATION IMPORTANT Pay attention to line routing. The catch hook (7) must engage.
9 Unplug all electrical connectors from driver-side SAM control unit with fuse and relay module (N10/1). INSTALLATION IMPORTANT Electrical connectors are color-coded and form-coded.
10 Unclip cutoff relay for interruptible loads (K75) together with bracket from driver-side SAM control unit with fuse and relay module (N10/1)
11 Remove driver-side SAM control unit with fuse and relay module (N10/1)
12 Install in the reverse order
COMMERCIALLY AVAILABLE TOOLS

Number Designation
WH58.30-Z-1048-13A STAR DIAGNOSIS, diagnosis system; Compact Passenger Car 6511 1801 00
