Remove/install driver's side interior fuse box - AR54.15-P-1310TX

MODEL 219.3

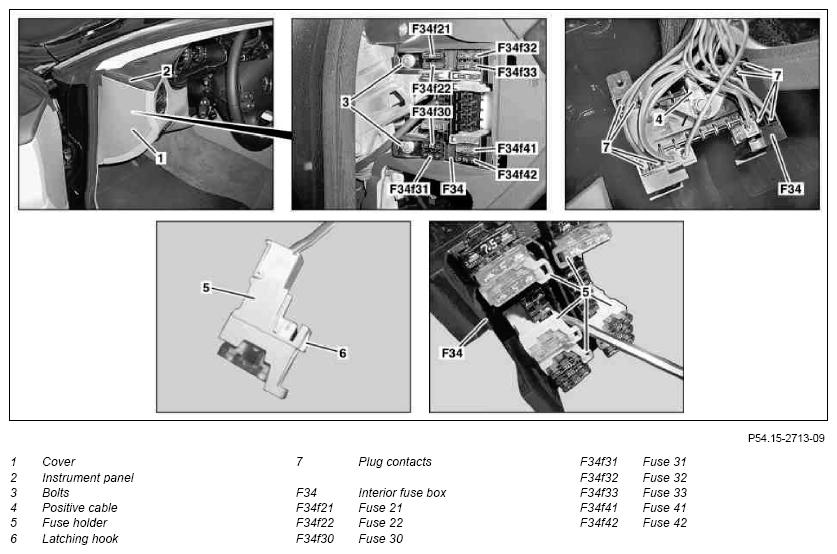

Fig 1: Identifying Driver Side Interior Fuse Box Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Disconnect battery ground cable		AR54.10-P-0003TX
2	Unclip cover (1) from instrument panel (2).		Fig 2
3	Remove fuses (F34f21, F34f22, F34f30, F34f31, F34f32, F34f33, F34f41, F34f42)	For installation location of fuses (F34f21, F34f22, F34f30, F34f31, F34f32, F34f33, F34f41, F34f42) see:↓
		Fuse assignment of fuse box in interior compartment on driver's side	GF54.15-P-1256-04TX
	Risk of fire and explosion  caused by machining/treating magnesium components	Keep away from ignition sources and open flames.	AS60.00-Z-0006-01R
4	Remove screws (3)	The crossmember under the instrument panel (2) is made of a magnesium alloy.
	Information on machining/treating magnesium components		AH60.00-P-0023-01R
5	Remove Interior fuse box (F34) from crossmember under the instrument panel (2) until the back of the interior fuse box (F34) is accessible
6	Detach positive lead (4) from interior fuse box (F34).
7	Unclip fuse holder (5) from interior fuse box (F34).	To do this, unlock the latching hook (6) using a screwdriver. Number of fuse holders (5) varies depending on equipment configuration. Observe color coding of fuse holder (5). Route electric cables without crossing over.
8	Remove plug contacts (7) from the interior fuse box (F34)	Observe installation location as with the wrong assignment of plug contacts (7) the risk of damage to the electrical system exists. route electric cables without crossing over.
			*WH58.30-Z-1002-32A
9	Remove interior fuse box (F34).
10	Install in the reverse order

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1002-32A	Commercially available pressing tools for E95, SPT and MPT contacts
