Remove/install battery - AR54.10-P-0005TX
MODEL 219.3

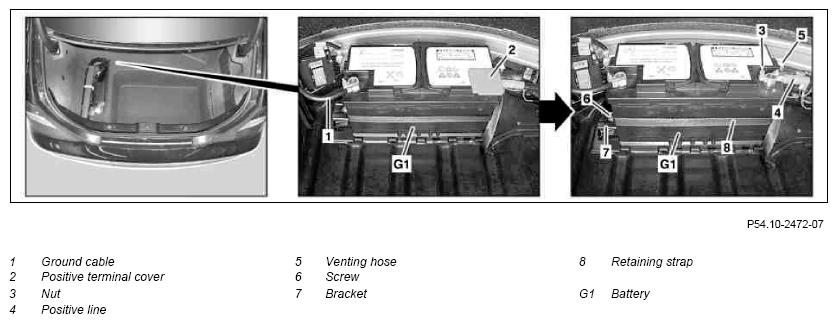

Shown on vehicle up to 31.5.06
| Remove/install | |||
| Risk of explosion caused by escaping oxyhydrogen gas. Risk of injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte (contains diluted sulfuric acid) or metal spatter due to short circuit. Risk of burn injuries caused by short circuit. Risk of poisoning caused by swallowing battery electrolyte (contains diluted sulfuric acid) or absorption of lead over the skin or orifices | No fire, sparks, open flames or smoking. Wear acid-resistant gloves and clothing and safety glasses with side guards. Do not place any conductive objects on the battery and avoid any short circuit from battery positive to ground. Only fill liquid battery electrolyte (diluted sulfuric acid) into suitable and appropriately marked containers. |
AS54.10-Z-0001-01A | |
| Notes on battery | AH54.10-P-0001-01A | ||
| Notes on AGM battery | AH54.10-P-0002-01A | ||
| 1 | Disconnect ground line (1) from the battery (G1) | AR54.10-P-0003TX | |
| 2 | Remove positive terminal cover (2) | ||
| 3 | Loosen nut (3) and detach positive line (4) from the battery (G1) | ||
| 4 | Pull off vent hose (5) | ||
| 5 | Remove bolt (6) and remove bracket (7) | ||
| 6 | Loosen retaining strap (8) and remove battery (G1) from trunk | ||
| 7 | Install in the reverse order |
