Remove/install additional turn signal lamp - AR82.25-P-4726Q: Notes

MODEL 209

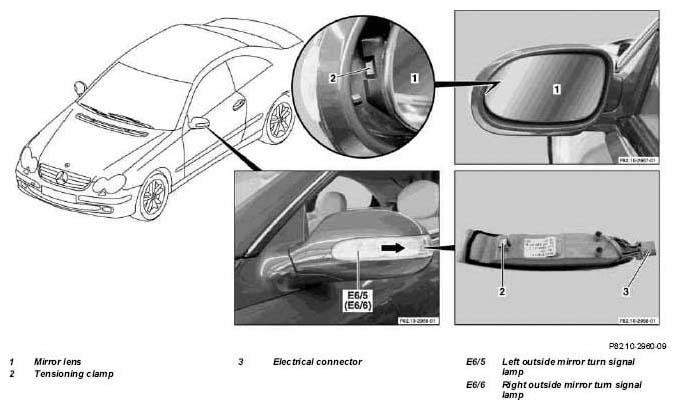

Fig 1: Identifying Additional Turn Signal Lamp Components - Model 209

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

MODIFICATION NOTES

12.5.04

Disconnect/connect/remove ground lead from battery

	Remove/install
1	Swivel outside rearview mirror lens (1) as far back as possible
2	Push retaining clip (2) to release
3	Slide left outside mirror turn signal lamp (E6/5) or right outside mirror turn signal lamp (E6/6) outwards and remove	Do not swivel the left outside mirror turn signal lamp (E6/5) or right outside mirror turn signal lamp (E6/6). Risk of cracks and fracture to electrical connector (3)
4.1	Remove mirror lens (1)	Only when replacing the left outside mirror turn signal lamp (E6/5) or right outside mirror turn signal lamp (E6/6)	AR88.70-P-9020Q
5.1	Adapt outside mirror cover	On vehicles up to 26.3.04 When replacing left outside mirror turn signal lamp (E6/5) or right outside mirror turn signal lamp (E6/6) the cover is adapted when fitted.	AR88.70-P-9100-01Q
	Fastening for additional turn signal lamp modified		BT82.25-P-0100-01Q
6	Install in the reverse order
7	Perform a function test
