Match outside mirror paneling - AR88.70-P-9100-01Q

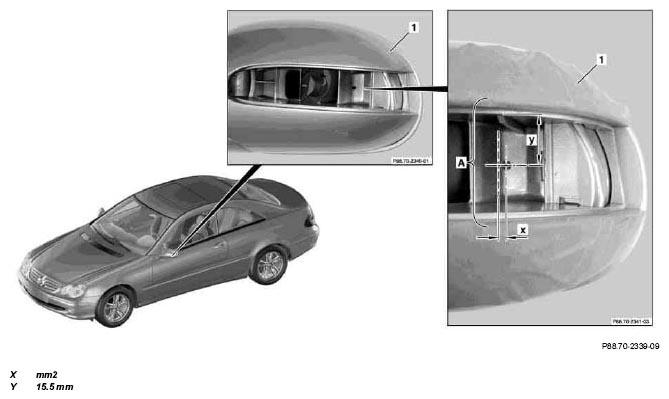

Fig 1: Identifying Match Outside Mirror Paneling - Workshop Equipment (1 Of 2)

Courtesy of MERCEDES-BENZ USA

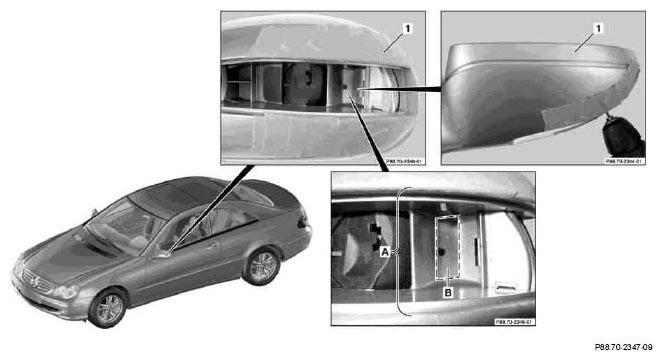

Fig 2: Identifying Match Outside Mirror Paneling - Workshop Equipment (2 Of 2)

Courtesy of MERCEDES-BENZ USA

1. Mask outside mirror paneling (1) with adhesive tape
2. Transfer dimension (X) in area (A) from radius and dimension (Y) in center of outside mirror paneling (1).
3. Drill 3.5 mm dia. hole ø in outside mirror paneling (1) in area (A) on surface (B) in a right angle

Ensure that the drill chuck does not damage the outside mirror paneling (1) when drilling.
