Replace complete center roof paneling - AR65.10-P-1000SC
MODEL 216
| Removing | |||
| Risk of death caused by high voltage used for electric welding. Risk of explosion caused by welding in the area of highly inflammable materials. Risk of injury caused by welding spatter and UV light while welding. Risk of poisoning caused by inhaling welding fumes. | Use insulating mats. Wear protective clothing, safety glasses and protective mask. Remove highly inflammable materials from the hazard area. Use air extractor system. | AS00.00-Z-0007-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Measures for preventing damage to vehicles or components when performing electric welding work | AH00.00-N-0005-01A | ||
| General information on repairs to body | AH60.00-N-0001-01A | ||
| Notes on paintwork repairs | AH98.00-P-9408-02A | ||
| General information on MB materials | AH98.00-P-9409-03A | ||
| 1 | Remove detachable parts in repair area and cover all remaining detachable parts remaining in the vehicle using a tarp (fire-resistant). | ||

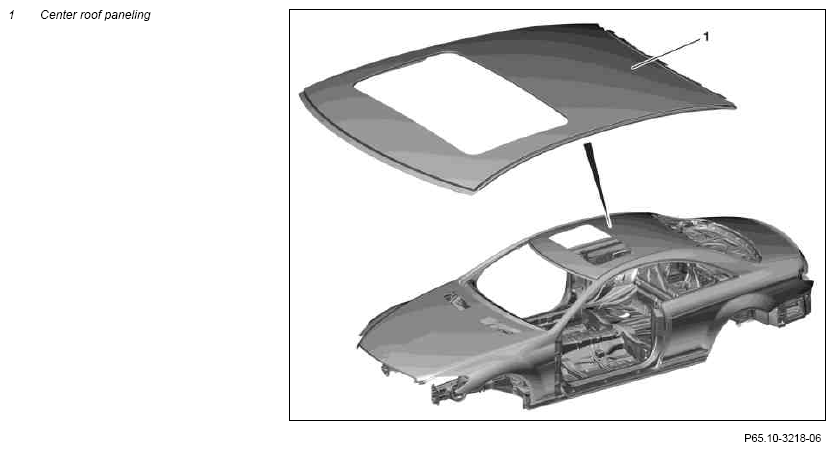

| 2 | Cut off center roof paneling (1) and prepare mating surfaces on body for installation. | AR65.10-P-1000-02SC | |
| *201589005100 | |||
| *216589022300 | |||
| 3 | Prepare center roof paneling (1) for installation. | AR65.10-P-1000-03SC | |
| Install | |||
| 4 | Install center roof paneling (1), fit and weld in. | AR65.10-P-1000-04SC | |
| *216589022300 | |||
| 5 | Clean areas to be repaired and prime with primer filler | ||
| 6 | Carry out seam sealing after repairs | AR97.10-P-4000SX | |
| 7 | Paint repair areas and adjacent surfaces | AR98.00-P-0150SX | |
| 8 | Apply additional cavity preservation | AR97.20-P-1500SC | |
| 9 | Remove tarp (fire-resistant) and install all detachable parts in the area of repair point |
