Rear rubber bushing, rear axle mount - Removal and installation - AR35.10-P-0042SX

MODEL 221 except CODE (Z07) Top protection

MODEL 216

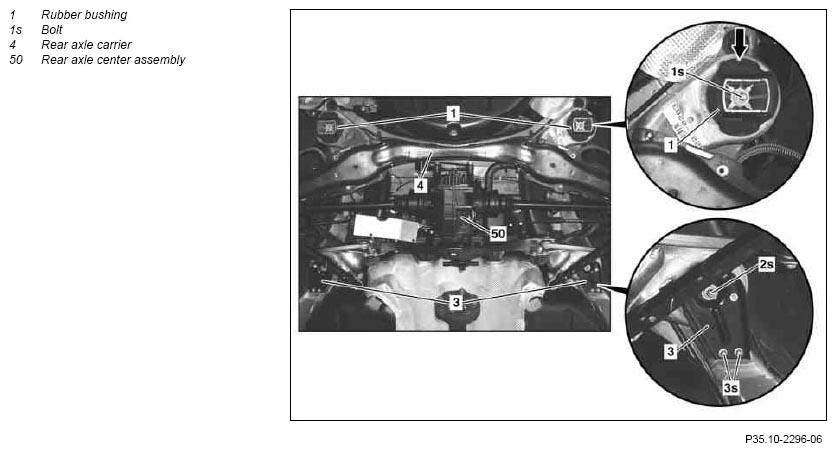

Fig 1: Identifying Rubber Bushing, Bolt, Rear Axle Carrier And Rear Axle Center Assembly
G07643087Courtesy of MERCEDES-BENZ USA

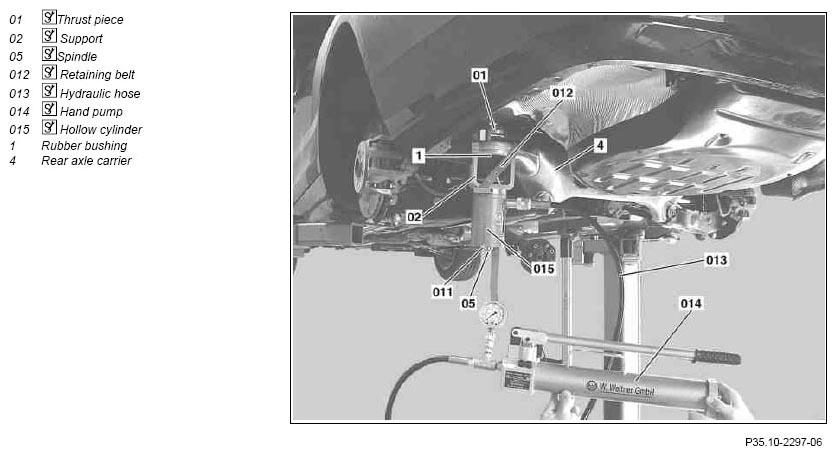

Fig 2: Removing/Installing Rear Rubber Bushing (1 Of 2)
G07643088Courtesy of MERCEDES-BENZ USA

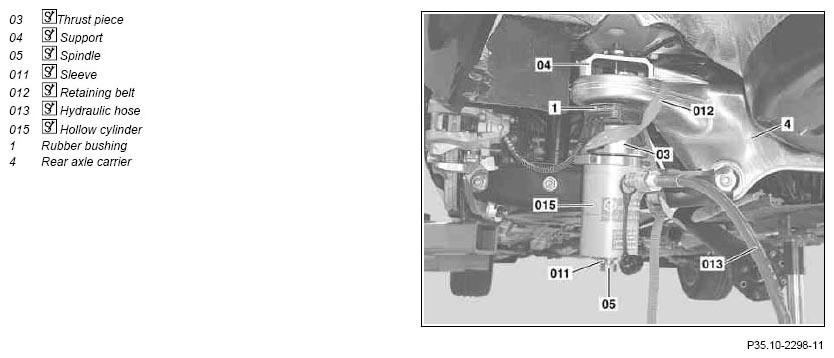

Fig 3: Removing/Installing Rear Rubber Bushing (2 Of 2)
G07643089Courtesy of MERCEDES-BENZ USA
MODIFICATION NOTES

20.1.06 Liquid lubricant (naphtolen H) replaced by rubber assembly fluid Step 12
REMOVING Removing
NOTES Notes on self-locking nuts and bolts   see AH00.00-N-0001-01A
NOTES While working on the rear axle care must be taken to ensure that the surface of all aluminum components do not get any scratches, cracks and notches. Otherwise the service life of the parts will be affected
IMPORTANT Always replace rear rubber mounts (1) in pairs
IMPORTANT The following tools are required from the extraction and insertion tools: SPECIAL TOOL
SPECIAL TOOL thrust piece (01)221 589 00 43 01,
SPECIAL TOOL thrust piece (03)221 589 00 43 03,
SPECIAL TOOL support (02)221 589 00 43 02,
SPECIAL TOOL support (04)221 589 00 43 04,
SPECIAL TOOL spindle (05) 221 589 00 43 05 and
SPECIAL TOOL sleeve (011)221 589 00 43 11
SPECIAL TOOL Fig 4
1 Secure vehicle on lifting platform   see AR00.60-P-0100SX
2 Remove rear wheels.
REFER TO MAINTENANCE Remove/install wheels   see AP40.10-P-4050SX
3 Remove exhaust system as of flange connection Engine 156, 272, 273, 275 see AR49.10-P-7100SX
Engine 642, 629 AR49.10-P-7100SXI
4 Detach propeller shaft from rear axle center assembly (50)   see AR41.10-P-0050-03SX
5 Prop up rear axle carrier (4) on rear axle center assembly (50) using transmission jack and transmission platform COMMERCIALLY AVAILABLE TOOLS Transmission platform
COMMERCIALLY AVAILABLE TOOLS Transmission jack see

6 Mark the installation position of the respective rubber mount (1) at cutout (arrow)
7 Remove bolts (1s) of rubber mounts (1)
8 Lower the rear axle carrier (4)
9 SPECIAL TOOL Attach thrust piece (01), SPECIAL TOOL support (02), SPECIAL TOOL spindle (05) and SPECIAL TOOL sleeve (011) with SPECIAL TOOL hollow cylinder (015) and SPECIAL TOOL retaining belt (012) to rubber mount (1) of rear axle carrier (4) IMPORTANT The SPECIAL TOOL retaining belt must be routed behind the SPECIAL TOOL thrust piece in order to prevent the SPECIAL TOOL hollow cylinder falling down when the rubber mount is pressed out.
SPECIAL TOOL Fig 6
SPECIAL TOOL Fig 8
10 SPECIAL TOOL Connect hand pump (014) using SPECIAL TOOL hydraulic hose (013) on SPECIAL TOOL hollow cylinder (015) SPECIAL TOOL Fig 5
SPECIAL TOOL Fig 7
SPECIAL TOOL Fig 6
11 Press rubber mount (1) out of rear axle carrier (4) IMPORTANT When pressing out the rubber mount the SPECIAL TOOL hollow cylinder (015) is supported in the SPECIAL TOOL retaining belt (012). Keep your distance!
INSTALLING Install
12 Coat new rubber mounts (1) with rubber assembly fluid   see *BR00.45-Z-1010-06A
13 SPECIAL TOOL Attach thrust piece (03), SPECIAL TOOL support (04), SPECIAL TOOL spindle (05) and SPECIAL TOOL sleeve (011) with SPECIAL TOOL hollow cylinder (015) and SPECIAL TOOL retaining belt (012) to the rubber mount (1) of the rear axle carrier (4) SPECIAL TOOL Fig 6
SPECIAL TOOL Fig 8
14 Press rubber mount (1) into rear axle carrier (4)
15 Raise rear axle carrier (4).
16 Screw in bolts (1s) of rubber mounts (1) TORQUE SPECIFICATION see *BA35.10-P-1002-01M
17 Mount propeller shaft onto rear axle center assembly (50)   see AR41.10-P-0050-04SX
18 Install exhaust system as of flange connection Engine 156, 272, 273, 275 see AR49.10-P-7100SX
Engine 642, 629 AR49.10-P-7100SXI
19 Fit rear wheels
REFER TO MAINTENANCE Remove/install wheels   see AP40.10-P-4050SX
20 Remove lifting platform safety device   see AR00.60-P-0100SX
REAR AXLE CARRIER

Number Designation Model 221 except 221.176/179 with rear axle differential 240V Model 221.176/179 with rear axle differential 240V
BA35.10-P-1002-01M Self-locking bolt, rear axle carrier rear rubber mount to frame floor Stage 1 Nm 80 80
Stage 2 ∠° 90 90
REAR AXLE CARRIER

Number Designation Model 216
BA35.10-P-1002-01M Self-locking bolt, rear axle carrier rear rubber mount to frame floor Stage 1 Nm 80
Stage 2 ∠° 90
Fig 4: Identifying Extraction And Insertion Tool (221 589 00 43 00)
G07643090Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Hand Pump (652 589 00 33 21)
G07643091Courtesy of MERCEDES-BENZ USA
Fig 6: Identifying Hollow Cylinder (652 589 00 33 22)
G07643092Courtesy of MERCEDES-BENZ USA
Fig 7: Identifying Hydraulic Hose (Complete) (652 589 00 33 23)
G07643093Courtesy of MERCEDES-BENZ USA
Fig 8: Identifying Retaining Belt (001 589 01 63 00)
G07643094Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1010-06A Lubricant, rubber assembly 1 l A 000 989 03 67
