Remove/install wheels, rotate if necessary - AP40.10-P-4050SX

MODEL 216

MODEL 221

Left illustration

Right figure

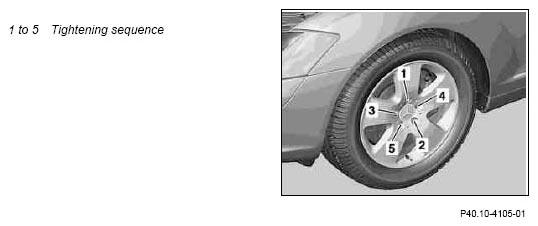

Fig 1: Identifying Wheel Bolts Tightening Sequence

Courtesy of MERCEDES-BENZ USA

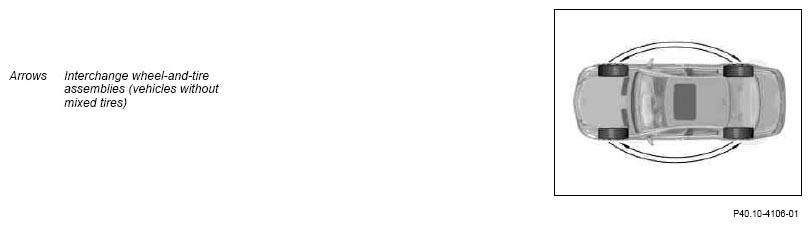

Fig 2: Identifying Interchange Wheel-And-Tire Assemblies Diagram

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

23.3.11

Information on bolted wheel connection added

Operation step 4

	Removing
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
1	Hoist vehicle with lifting platform until wheels are free		AR00.60-P-1000SX
2	Unfasten wheel bolts and wheels using wheel lift	Note modified wheel bolts for 17" forged wheel (long wheel bolt). Wheel lift/wheel lift truck gotis://F_40.1_06.0
			Fig 3
	Checking
3	Check tires for damage and condition, measure tread depth and note down measurements on maintenance sheet		AP40.10-P-4051SX
	Information on tires / rims		AH40.10-P-9411-01A
4	Clean and check wheel bolt connection components, then protect against corrosion	Before mounting a wheel-and-tire assembly all  the operation steps listed in the linked description must be conducted carefully. Otherwise the wheel-and-tire assembly may work its way loose from the vehicle and cause damage to people, property or the environment!	AP40.10-P-4050-01A
		Cleaner from package	*BR00.45-Z-1028-04A
		Long-life grease	*BR00.45-Z-1001-06A
	Install
5	Change round wheel-and-tire assemblies on front and rear axles	If necessary, and only on vehicles without mixed tires Maintain running direction of wheel-and-tire assemblies. Otherwise handling characteristics and handling comfort may be impaired and tire wear increased.
6	Mount wheels using wheel lift and tighten wheel bolts	Observe the tightening sequence (1 to 5) and tightening torque. Note modified wheel bolts for 17" forged wheel (long wheel bolt).
			*BA40.10-P-1001-01L
7	Lower vehicle
8	Correct tire pressure for all wheel-and-tire assemblies	In the event of tire pressure loss, establish cause and replace valve, tire or rim: ↓ Replace tire:
		Model 216,	AR40.10-P-1030SX
9.1	Activate tire pressure loss warner	Only when interchanging wheel and tire assembly, replacing tires or changing tire pressure and only vehicles without tire pressure monitor (Siemens).	AR54.30-P-1000-02RAW
9.2	Activate the tire pressure monitoring system	Only when interchanging a wheel-tire-assembly, tire replacement or change in tire pressure and only vehicles with code (475) Tire pressure monitor (Siemens):	AR54.30-P-1000-02RAS

WHEELS

Number	Designation		Model 216
BA40.10-P-1001-01L	Bolt, disk wheel to wheel hub or flange	Nm	150

Fig 3: Identifying Socket Wrench (199 589 01 09 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1028-04A	Cleaner from package	Adolf Wurth GmbH&Co. KG Reinhold-Wurth-Str. 12-17 74653 Kunzelsau-Gaisbach Germany Tel. +49 7940 15-0 Fax +49 7940 15-1000 www.wuerth.de
BR00.45-Z-1001-06A	Long-life grease	A 000 989 63 51 11
