Remove/install radius rod - AR35.20-P-0111P

MODELS 203, 209.3/ 4

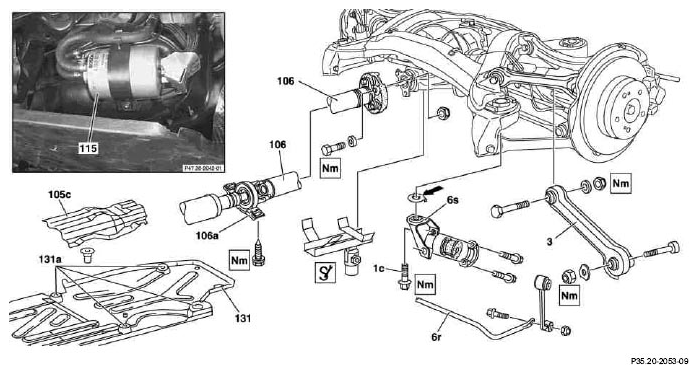

Fig 1: Identifying Radius Rod Remove/Install Components - Shown On Models 203, 209.3/ 4

	Remove/install
	Risk of death  due to the vehicle slipping off or toppling off the lifting platform	Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
Installation	Replace self-locking nuts and bolts.
1	Remove rear wheels	See ↓
		Remove/install wheels, rotate if necessary.	AP40.10-P-4050Z
2	Remove torsion bar (6r)	Linkage rods remain attached to the wheel carriers.
			*BA32.20-P-1001-04C
			*BA32.20-P-1006-04C
3	Detach underbody panel (131).	Unscrew the four rear bolts on the cover panel (131a) and press the panel down. Avoid bending side member cover panels any more than absolutely necessary.
4	Unscrew fuel filter (115) at bracket	Do not disconnect fuel lines. Hold fuel filter to the side.
5	Remove exhaust heat shield (105c)
6	Unscrew retaining bolts from propeller shaft intermediate bearing (106a)		*BA41.40-P-1001-01A
7	Disconnect propeller shaft (106) from rear axle center assembly at the flange	See ↓
		Disconnect rear propeller shaft from rear axle center assembly. The flexible coupling remains on the propeller shaft. Tie up propeller shaft as high as possible. If the propeller shaft cannot be detached from the propeller shaft flange: ↓	AR41.10-P-0050-03EA
		Release guide sleeves on flexible coupling.	AR41.10-P-0050-09DA
	Drift for releasing the fitted sleeves in the flexible couplings	Models 203, 209	WF58.50-P-4110-01A
			*BA41.10-P-1002-01A
8	Support rear axle at rear axle center assembly	Secure against falling.
			Figure
9	Remove rear axle mounting bolts (1c) at front and rear on one side	Installation:  Recut thread on frame floor with tap.
		Front rear axle suspension bolt.	*BA35.10-P-1001-01A
		Rear axle suspension bolt.	*BA35.10-P-1002-01A
10	Lower rear axle	When lowering the rear axle, press away from fuel tank using assembly lever. Drain rear axle until the fixing bolt of the tension arm can be tightened at the rear axle carrier.
11	Unscrew bolts of tension arm (3) at wheel carrier and rear axle carrier	Self-locking nut, tension arm to rear axle carrier.	*BA35.20-P-1001-03A
		Self-locking nut, tension arm to wheel carrier.	*BA35.20-P-1002-03A
		Retainer wrench	Figure
12	Install in the reverse order

REAR AXLE TORSION STRUT

Number	Designation		Model 203	Model 209
BA32.20-P-1001-04C	Nut for attaching link rod to torsion bar	Nm	40	40
BA32.20-P-1006-04C	Bolt, U-bolt to torsion bar bracket	Nm	30	30

REAR AXLE CARRIER

Number	Designation				Model 203	Model 209
BA35.10-P-1001-01A	Self-locking bolt, front rear axle carrier rubber mount to frame floor			Nm	-	-
		with bolt	1st stage	Nm	-	-
		flange ø 24mm	2nd stage	∠ °	-	-
		with bolt	1st stage	Nm	40	40
		flange ø 26mm	2nd stage	∠ °	90	90
BA35.10-P-1002-01A	Self-locking bolt, rear axle carrier rear rubber mount to frame floor			Nm	-	-
		with bolt	1st stage	Nm	-	-
		flange ø 24mm	2nd stage	∠ °	-	-
		with bolt	1st stage	Nm	40	40
		flange ø 26mm	2nd stage	∠ °	90	90

TENSION ARM

Number	Designation			Model 203	Model 209
BA35.20-P-1001-03A	Self-locking nut, tension arm to rear axle carrier	1st stage	Nm	70	-
		2nd stage	∠ °	-	-
BA35.20-P-1002-03A	Self-locking nut, tension arm to wheel carrier	1st stage	Nm	70	50
		2nd stage	∠ °	-	45

DRIVESHAFT

Number	Designation			Model 203	Model 209
BA41.10-P-1002-01A	Self-locking nut, flexible coupling to rear propeller shaft or rear axle center assembly.	M10	Nm	40	40
		M12	Nm	60	60

DRIVESHAFT CENTER BEARING

Number	Designation			Model 203	Model 209
BA41.40-P-1001-01A	Bolt driveshaft center bearing to frame	Bolt with washer	Nm	-	-
		Bolt with collar and self-centering tip	Nm	30	30
		Bolt with collar and without self-centering tip	Nm	-	-

Fig 2: Identifying Assembly Attachment (140 589 01 62 00)

Fig 3: Identifying Retainer Wrench (202 589 00 10 00)
