Remove, install inlet and pressure connections of supercharger - AR09.50-P-8841PK

ENGINE 111.955 in MODEL 203.045 /245 /745

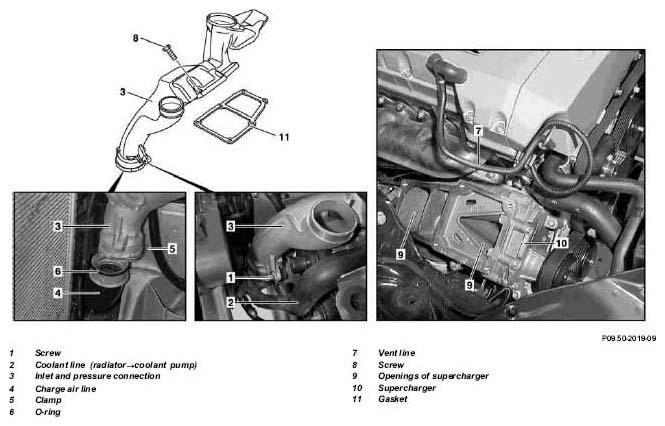

Fig 1: Identifying Inlet And Pressure Connections Of Supercharger Remove/Install Components

	Removing, installing
1	Remove recirculated air flap actuator together with resonance body		AR09.50-P-8842PK
2	Unscrew bolt (1) of coolant line (2) at inlet and pressure connection (3)
3	Detach charge air line (4) from inlet and pressure connection (3)	Push back clamp (5) until it locks in place. Seal opening of charge air cooler.
		Installation:  Replace O-ring (6).
4	Detach vent line (7) at the inlet and pressure connection (3)
5	Unscrew bolts (8) at inlet and pressure connection (3)		*BA09.50-P-1004-01A
			*BA09.50-P-1005-01A
6	Remove inlet and pressure connection (3)	Seal openings (9) of supercharger (10).
		Installation:  Replace gasket (11).
7	Install in the reverse order

SUPERCHARGER

Number	Designation		Engine 111.955/958/983
BA09.50-P-1004-01A	Intake connection fitting to supercharger	NM	20
BA09.50-P-1005-01A	Pressure connection to supercharger	NM	20
