Remove, install recirculated air flap actuator together with resonance body - AR09.50-P-8842PK

ENGINE 111.955 in MODEL 203.045 /245 /745

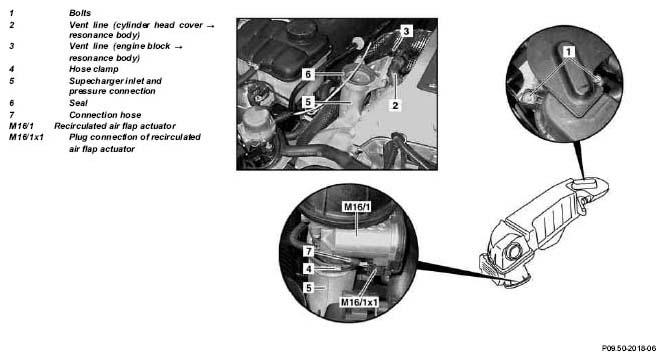

Fig 1: Identifying Recirculated Air Flap Actuator Together With Resonance Body Remove/Install Components

	Removing, installing
1	Unscrew bolts (1)
2	Detach vent lines (2, 3)	Installation:  Inspect vent lines, replace if necessary.
3	Remove air cleaner housing	Only remove air cleaner housing if the hose clamp (4) is not accessible when air cleaner housing is installed.	AR09.10-P-1150PK
4	Slacken hose clamp (4)	Installation:  Inspect hose clamp, replace if necessary.
5	Detach recirculated air flap actuator (M16/1) from the inlet and pressure connection (5) sufficiently until plug connection (M16/1x1) is accessible
6	Separate plug connection of recirculated air flap actuator (M16/1x1)
7	Remove recirculated air flap actuator (M16/1) together with the resonance body	Seal openings of inlet pressure connections (5). Installation:  Inspect seal (6) and connection hose (7) of the inlet and pressure connection (5), replace if necessary.
8	Install in the reverse order
