Removing and installing front substructure for load compartment floor - AR68.20-P-4820PA
MODEL 203.2
| Removing, installing | |||
|---|---|---|---|

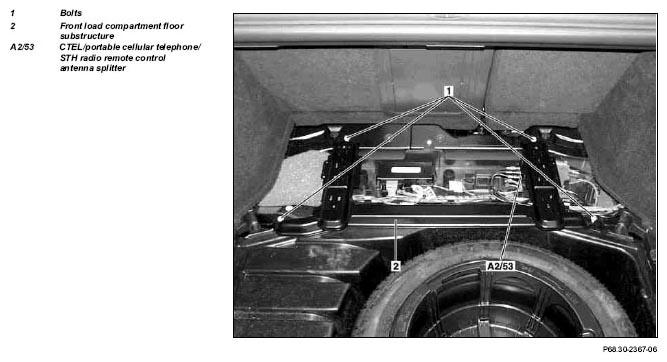

| 1 | Remove floor covering or load compartment | AR68.20-P-4810PB | |
| 2 | Unscrew screws (1) | ||
| 3 | Unclip CTEL/portable cellular telephone/STH radio remote control antenna splitter (A2/53) | ||
| 4 | Remove front load compartment floor substructure (2) | ||
| 5 | Install in the reverse order |
