Remove/install stowage box lid - AR68.20-P-5701VA

MODEL 171.4

with CODE (359) TELE AID emergency call system, lowcost

with CODE (386) Preinstallation for portable CTEL telephone, UPCI telephone system

with CODE (387) Preinstallation for portable CTEL telephone, UPCI system USA/Canada

with CODE (388) Portable CTEL telephone, UPCI system

with CODE (498) Japanese version

Cover for stowage box in center console

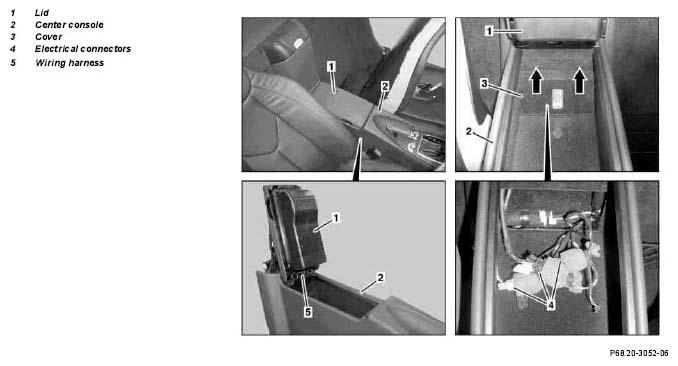

Fig 1: Identifying Stowage Box Lid Components

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Open lid (1) for stowage box in center console (2)	See Operating Instructions
2	Unclip cover (3) with suitable screwdriver
3	Separate electrical connectors (4)
4	Unlock lid (1) in recesses (arrows) with suitable screwdriver
5	Remove lid (1) upward from center console (2) and remove wiring harness (5) from center console	Installation:  Observe routing of lines.
6.1	Remove bracket for portable CTEL telephone	Only when replacing lid (1).	AR82.70-P-8918V
7.1	Remove wiring harness (5) from lid (1)	Only when replacing lid (1).
8	Install in the reverse order
