Remove/install steering wheel - AR46.10-P-0100V
MODEL 171
MODIFICATION NOTES
| 4.8.06 | Disconnect ground line discontinued |
| Remove/install | |||
|---|---|---|---|
| Risk of injury caused by performing testing or repair work on airbag or emergency tensioning retractor units. | Store airbag unit with deployment face up, do not subject to temperatures above 100°C. When working on these units, disconnect the power supply. | - | |
| 1 | Move steering wheel (32) to horizontal position | ||
| 2 | Remove electronic ignition key | ||
| 3 | Remove airbag unit from steering wheel (32) | AR91.60-P-0660V | |
| Notes on performing repair, body work and welding on vehicles with airbags and ETR units | - | ||
| 4 | Disconnect electrical connection of steering wheel heater on steering wheel | Vehicles with steering wheel heater, code 443 | |
| 5 | Unscrew countersunk screw (32c), steadying steering wheel (32). | ||
| *BA46.10-P-1001-02A | |||
| 6 | Remove steering wheel (32), guiding the electrical lines from the airbag through the opening in the wheel | ||
| 7 | Check the spiral contact coil (A45) for damage | ||
| Remove/install clock spring contact | AR46.10-P-0200V | ||
| 8 | Install in the reverse order | ||
| Checking | |||
| 9 | Conduct a road test | Turn signal return If displacement is more than one tooth, problem-free canceling of flashers is not guaranteed. Airbag indicator lamp The SRS indicator lamp must not light up when the steering is turned to full lock in both directions. Steering wheel position (32) If the steering wheel is not on straight, offset it by more than one tooth. |

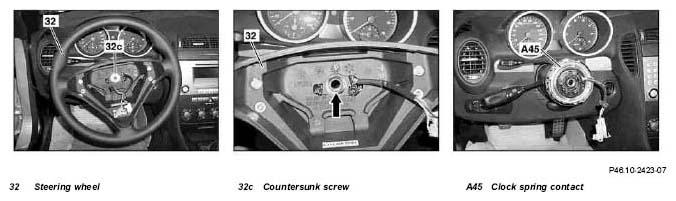

STEERING WHEEL
| Number | Designation | Model 171 | |
|---|---|---|---|
| BA46.10-P-1001-02A | Bolts, steering wheel to steering shaft | Nm | 80 |
