| 1 |
Remove steering wheel |
|
AR46.10-P-0100V |
| 2 |
Remove jacket tube switch module (2) |
 Installation:
Slide steering column switch module (2) complete with clock spring contact (A45) onto steering column tube and screw in mounting screw. |
AR54.25-P-2800-01TX |
| 3 |

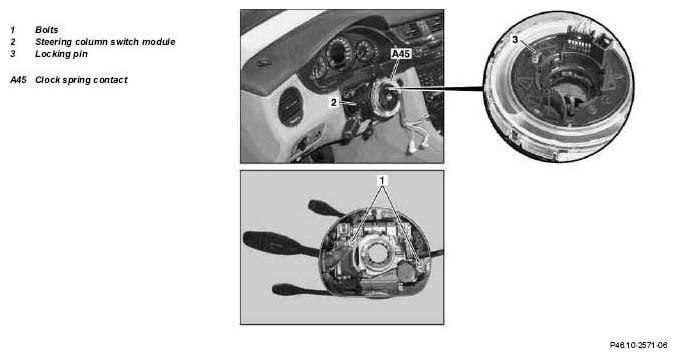

Unscrew bolts (1) from steering column switch module (2) |
Do not operate locking pin (3) as this is the anti-twist lock of the clock spring contact (A45). |
|
| 4 |

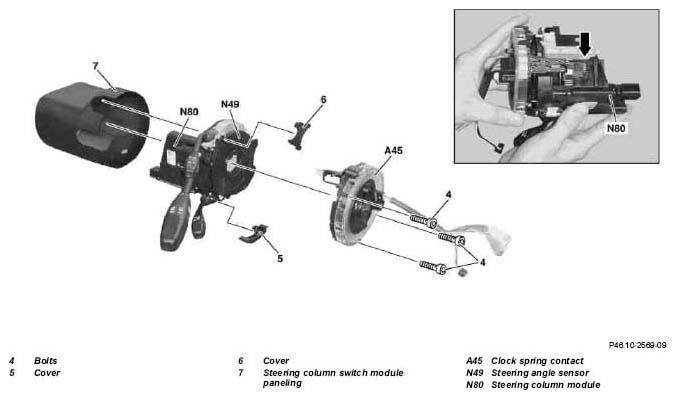

Remove paneling (7) of steering column switch module (2) |
Installation:
Pay attention to correct seating of coverings (5, 6). |
|
| 5 |
Unscrew bolts (4) from steering column switch module (2) |
|
|
| 6 |
Remove clock spring contact (A45) |
If the clock spring contact (A45) has been twisted, then it has to be replaced.
Installation:
When fitting the clock spring contact (A45) check for correct seating of the plug contacts on the steering column module (N80) (arrow). |
|
 |
Checking |
|
|
| 7 |
Check the spiral contact coil (A45) for damage |
Visual inspection, if necessary replace clock spring contact (A45). |
|
| 8 |
Install in the reverse order |
|
|
