Remove/install seat cushion - AR91.10-P-3310VA
MODEL 171.4 with CODE (873) Right and left front seat heaters
| Remove/install | |||
|---|---|---|---|
| Risk of injury caused by backrest suddenly folding forward if release lever is accidentally operated during inspection and repair work | When working on the seat, be careful not to accidentally release the backrest mechanism allowing the seat to fold forward. Keep body parts clear of the backrest travel area. | AS91.00-Z-0005-01V | |
| Notes on seat occupied recognition | Front passenger seat and vehicles as of 1.06.06 with code (494) USA version | AH91.60-P-0760-01P | |
| 1 | Remove left or right front seat | AR91.10-P-1000V | |
| 2 | Remove paneling on front seat frame | AR91.10-P-1200V | |
| 3 | Place front seat to the rear on the front seat backrest | ||

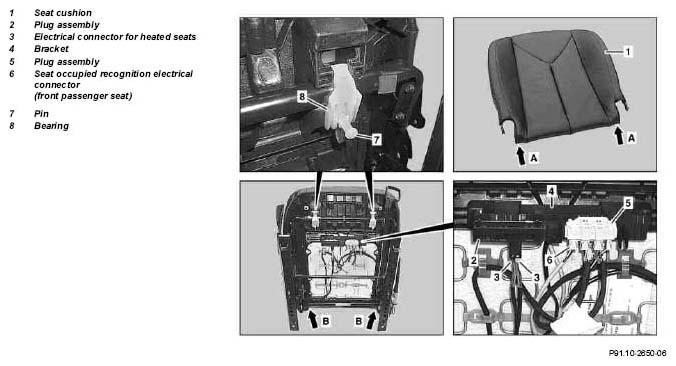

| 4 | Remove plug assembly (2) using suitable screwdriver on bracket (4) and detach electrical connector for heated seats (3) | ||
| 5.1 | Remove plug assembly (5) using suitable screwdriver on bracket (4) | Passenger seat | |
| 6.1 | Release and disconnect seat occupied recognition electrical connector (6) from plug assembly (5) using suitable screwdrivers | Front passenger seat (seat occupied recognition or with code (494) USA version as of 1.06.06) | |
| 7.1 | Unclip bracket (4) on seat cushion (1) | Only for vehicles without code (275) Memory package (driver seat, steering column, mirrors) or without code (242) Electrically adjustable front passenger seat with memory. |
|
| 8 | Expose all wiring harnesses on seat cushion (1) | ||
| 9 | Remove bolts (7) on left and right fixtures (8) and remove both fixtures (8) on the seat cushion (1) | ||
| 10 | Pull the seat cushions (1) forward and out | ||
| 11 | Install in the reverse order |
