Remove/install front seat frame trim panels - AR91.10-P-1200V
MODEL 171.4
Shown on vehicle as of 1.06.06 with code (494) USA version
MODIFICATION NOTES
| 12.4.06 | Plug bracket added | Step 6.1 |
| Remove/install | |||
|---|---|---|---|
| Risk of injury caused by backrest suddenly folding forward if release lever is accidentally operated during inspection and repair work | When working on the seat, be careful not to accidentally release the backrest mechanism allowing the seat to fold forward. Keep body parts clear of the backrest travel area. | AS91.00-Z-0005-01V | |
| 1 | Set left or right front seat up and to the rear | ||

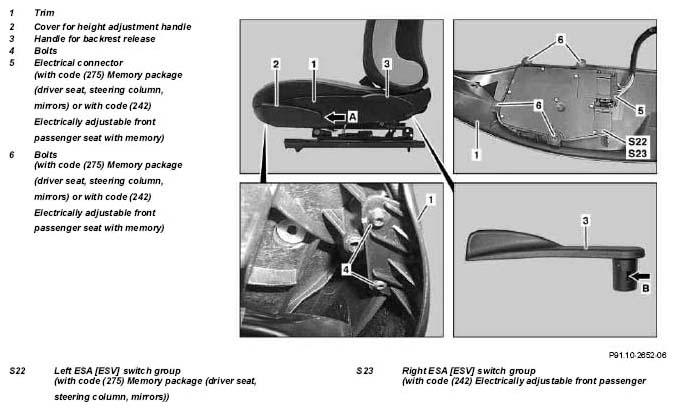

| 2.1 | Undo cover for height adjustment handle (2) using rear mounting wedge (arrow A) and remove | Only on vehicles without code (275) Memory package (driver seat, steering column, mirrors) or without code (242) Electrically adjustable front passenger seat with memory |
|
| Fig 3 | |||
| 3.1 | Unlock backrest release handle (3) on lower cutout (arrow B) using a suitable screwdriver and remove | Only on vehicles without code (275) Memory package (driver seat, steering column, mirrors) or without code (242) Electrically adjustable front passenger seat with memory |
|
| 4 | Remove bolts (4) | ||
| 5 | Unclip seat cushion trim (1) using assembly wedge and remove | Fig 3 | |

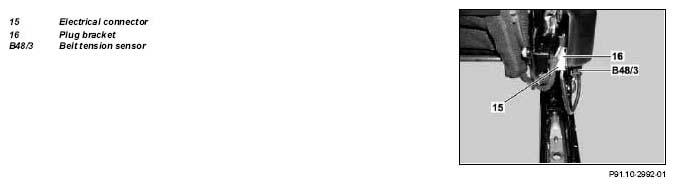

| 6.1 | Unclip plug bracket (16) for belt tension sensor (B48/3) from trim (1) | Front passenger seat and vehicles as of 1.06.06 with code (494) USA version | |
| 7.1 | Separate electrical connector (5) | Only on vehicles with code (275) Memory package (driver seat, steering column, mirrors) or with code (242) Electrically adjustable front passenger seat with memory |
|
| 7.2 | Undo bolts (6) and remove left seat adjustment switch group (S22) or right seat adjustment switch group (S23) | Only when replacing trim (1) and on vehicles with code (275) Memory package (driver seat, steering column, mirrors) or with code (242) Electrically adjustable front passenger seat with memory |
|
| 8 | Install in the reverse order |
