Remove/install engine mount - AR22.10-P-1100R

ENGINE 113.963 in MODEL 230.475

ENGINE 113.992 in MODEL 230.474

ENGINE 113.991 in MODELS 215.374, 220.074

ENGINE 112.973 in MODEL 230.467

ENGINE 113.995 in MODEL 230.472

Shown on engine 113

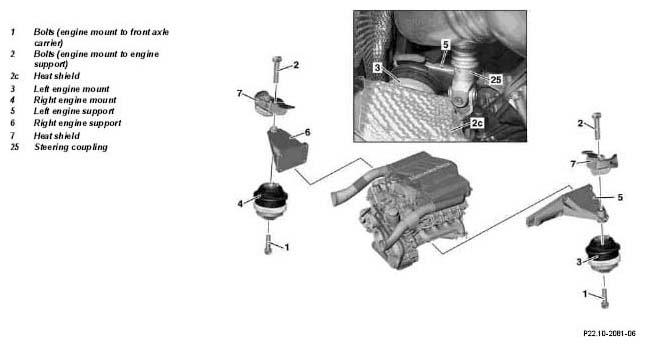

Fig 1: Identifying Engine Mount Remove/Install Components - Shown On Engine 113

	Remove/install
	General information	Engine mounts must be always be replaced in pairs.
	Right hand engine mount
	Risk of explosion  caused by oxyhydrogen gas. Risk of poisoning and caustic burns  caused by swallowing battery acid. Risk of injury  caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries	No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and safety glasses. Only pour battery acid into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
1	Detach ground line(s) from battery(ies)
	Notes on battery		AH54.10-P-0001-01A
		Model 215, 220	AR54.10-P-0003I
2	Unclip front engine paneling
3.1	Mount bracket on supercharger	Engines 113.991/ 992/ 995
4	Attach engine support bracket and raise engine		AR33.10-P-0100-01R
		Engine support frame	*WE58.40-Z-1027-11A
5	Remove center and rear sections of engine compartment paneling	Model 215, 220	AR61.20-P-1105M
		Model 230	AR61.20-P-1105R
6.1	Remove exhaust system on exhaust manifold and push upwards out of exhaust manifold	Model 230 with steel suspension See: ↓
		Remove complete exhaust system	AR49.10-P-7000R
7	Unscrew bolts (1) of front engine mounts	Models 215, 220	*BA22.10-P-1001-01L
		Model 230	*BA22.10-P-1001-01X
8	Raise engine	Do not overstretch lines and hoses.
9.1	Remove heat shield on right engine mount	Model 230 with steel suspension
10	Detach right engine mount (4) from right engine support (6) and take out toward rear	Installation: The anti-twist lock on right engine mount (4) must sit in retaining groove of right engine support (6). Bolt, engine mount to engine carrier
		Models 215, 220	*BA22.10-P-1004-01L
		Model 230	*BA22.10-P-1004-01X
		Connection piece	Fig 2
		Four-point drive	Fig 3
		Tool kit	Fig 4
		Open end wrench bit	*WH58.30-Z-1047-06A
	Left engine mount
11	Deactivate easy entry/exit feature	Driver seat and steering wheel move to a different position when the driver door is opened or closed, see operating instructions. The upper frame will be damaged if the retaining device is installed. The steering wheel must not be turned when the steering coupling is detached, otherwise the clock spring contact will be destroyed.
12	Turn steering wheel to central position (front wheels in straight ahead position) and secure with the retaining device	Retainer	Fig 5
13	Unclip front engine paneling
14.1	Mount bracket on supercharger	Engines 113.991/ 992/ 995
15	Attach engine support bracket and raise engine		AR33.10-P-0100-01R
		Engine support frame	*WE58.40-Z-1027-11A
16	Remove center and rear sections of engine compartment paneling	Models 215, 220	AR61.20-P-1105M
		Model 230	AR61.20-P-1105R
17.1	Remove exhaust system on exhaust manifold and push upwards out of exhaust manifold	Model 230 with steel suspension See: ↓
		Remove complete exhaust system	AR49.10-P-7000R
18	Unscrew bolts (1) of front engine mounts	Models 215, 220	*BA22.10-P-1001-01L
		Model 230	*BA22.10-P-1001-01X
19	Raise engine	Do not overstretch lines and hoses.
20	Remove steering coupling (25)		AR46.10-P-8000I
21	Remove heat shield (2c)
22	Detach left engine mount (3) from left engine support (5) and take out toward rear	Installation:  The anti-twist lock on left engine mount (3) must sit in retaining groove of left engine support (5). Bolt, engine mount to engine carrier
		Models 215, 220	*BA22.10-P-1004-01L
		Model 230	*BA22.10-P-1004-01X
		Connection piece	Fig 2
		Four-point drive	Fig 3
		Tool kit	Fig 4
23	Install in the reverse order

ENGINE MOUNTS, ENGINE SUPPORTS

ENGINE MOUNTS, ENGINE SUPPORTS

Fig 2: Identifying Connecting piece (210 589 00 16 00)

Fig 3: Identifying Four-Point Drive (210 589 01 16 00)

Fig 4: Identifying Tool Kit (000 589 10 99 00)

Fig 5: Identifying Retainer (129 589 01 21 00)
