Remove/install |
|
|
 |
Notes on active body control suspension |
|
AH32.50-P-0001-01N |
| |
Right engine side (removal of engine mount and engine support) |
|
|
| 1 |
Disconnect/connect battery's ground cable |
Turn key in electronic ignition switch EIS into position "0". Key cannot be withdrawn. |
AR54.10-P-0003I |
 |
Notes on battery |
Vehicles with Keyless Go code 889: Switch engine off, remove Keyless-Go cards from the vehicle and store outside of the transmitter range.
Do not connect quiescent current retention unit. A short circuit could occur, if the electrical line circuit 30 (B+) comes into contact with the ground. |
AH54.10-P-0001-01A |
| 2 |
Remove lower engine compartment paneling |
|
AR61.20-P-1105M |
| 3 |
Unclip cover on front end of engine. |
|
|
| 4 |

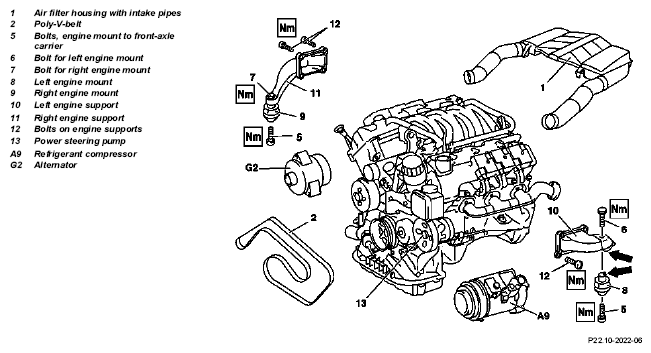

Remove air filter housing with air intake pipes (1) |
|
|
| 5 |
Remove ribbed V-belt |
Except engine 113.991 |
AR13.22-P-1202BA |
| |
|
Engine 113.991 |
AR13.22-P-1202R |
| 6 |
Disconnect electrical lines at generator (G2). |
Installation:
Note installation position of lines. |
|
| |
|
 |
*BA15.40-P-1001-01A |
| 7 |
Dismount generator (G2) and place in the engine compartment to the side |
Engine 112.922/944, 113.941/960 |
*BA15.40-P-1003-01A |
| 8 |
Attach engine support bracket |
|
AR01.10-P-7500-03I |
| 9 |
Unscrew engine mount (5) bolts to front axle carrier |
Unscrew on both sides.
The anti-twist locks in front axle beam must latch in retaining grooves of engine mount (8, 9). |
|
| |
|
|
*BA22.10-P-1001-01L |
| 10 |
Raise engine at front lifting eye |
Ensure that rear of engine does not touch the body. |
|
| 11 |
Dismount right engine support (11) at crankcase, for this step unscrew bolts (12) and take out right engine support (11) with engine mount (9) toward front. |
Installation:
Replace bolts (12). |
|
| |
|
|
*BA22.10-P-1005-01L |
| 12 |
Dismount engine mount (9) from right engine support (11) |
Installation:
The anti-twist lock () at engine mount (9) must latch in retaining groove in engine support (11) (arrow). |
|
| |
|
|
*BA22.10-P-1004-01L |
| |
|
Dispose of engine mount at scrap yard. |
|
| |
Left engine side (removal of engine mount or engine mount with engine support) |
|
|
| 13 |
Remove power steering pump (13) |
Vehicles without Active Body Control code 487a |
AR46.30-P-0500B |
| |
|
Vehicles with Active Body Control code 487a |
AR46.30-P-0500NA |
| 14 |
Dismount refrigerant compressor (A9) from bracket and place to the side |
Adjust Torx double box-type wrench for lower front screw |
|
| |
|
|
*BA83.55-P-1002-01A |
 |
Torx double box-type wrench for removal of refrigerant compressor |
|
WF58.50-P-8355-01A |
| 15.1 |
Dismount engine mount (8) from left engine support (10) |
Removal of engine mount (8).
Installation:
The anti-twist lock () at engine mount (8) must latch in retaining groove in engine support (10) (arrow). |
|
| |
|
|
*BA22.10-P-1004-01L |
| |
|
Dispose of engine mount at scrap yard. |
|
| 16.1 |
Dismount left engine support (10) at crankcase, for this step unscrew bolts (12) and take out left engine support (10) with engine mount (8) toward front. |
Removal of left engine support (10) and engine mount (8). |
|
| |
|
Installation:
Replace bolts (12). |
|
| |
|
|
*BA22.10-P-1005-01L |
| 17 |
Install in the reverse order |
|
|
