Remove/install bottom part of oil pan - AR01.45-P-7555VA

ENGINE 112.945 in MODELS 463.209 /232 /233 /244 /245 /250

ENGINE 112 in MODELS 129, 170, 202, 208, 210

ENGINE 113.962 in MODELS 463.206 /240 /241 /247 /248 /249 /254

ENGINE 113 in MODELS 129, 202, 208, 210

ENGINE 113.982 in MODELS 463.243 /246

ENGINE 112 (except 112.975) in MODEL 220

ENGINE 113 / (except 113.966 /948) in MODEL 220

ENGINE 113.993 in MODELS 463.270 /271

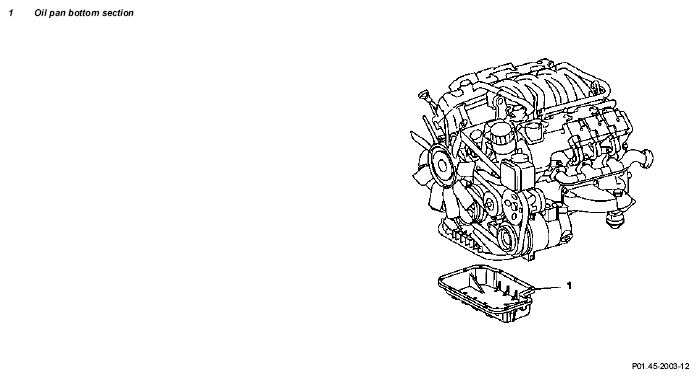

Fig 1: Identifying Oil Pan Bottom Part Remove/Install Components - Engines 112, 113
G04714944
REMOVINGINSTALLING Remove/install
DANGER Risk of death  caused by vehicle slipping or toppling off the lifting platform. Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
1 Lift/jack up vehicle All except model 463.
    Model 463. only AR00.60-P-1000G
2.1 Remove engine compartment paneling All except model 463, 220, 170 AR61.20-P-1105AB
    Model 220 AR61.20-P-1105M
    Model 170 AR61.20-P-1105A
2.2 Remove under-ride guard IMPORTANT Only model 463 except 463.246/271.
    Model 463.246 with engine 113.982 AR88.30-P-0010MG
    On model 463.271 with AMG under-ride guard in stainless steel. AR88.30-P-0010MG
3 Drain and collect engine oil IMPORTANTInstallation:  Replace sealing ring of the oil drain screw.
    TORQUE SPECIFICATION *BA01.45-P-1003-01B
    FLUID SPECIFICATION *BF18.00-P-1001-01H
4 Detach bracket of automatic oil lines at oil pan bottom section (1)
5 Remove oil pan bottom section (1) IMPORTANTInstallation:  Observe application of sealing compound to oil pan bottom section: ↓
IMPORTANT Notes on application of sealant to oil pan Engine 112 AH01.45-P-0001-01C
    Engines 113.940/943/944/961/980/984 AH01.45-P-0001-01D
    Engines 113.941/942/960/962/981/982/993 AH01.45-P-0001-01E
    TORQUE SPECIFICATION *BA01.45-P-1002-01B
    Sealant *BR00.45-Z-1013-01A
6 Install in the reverse order
TORQUE SPECIFICATION OIL PAN

Number Designation Engines 112.910/911/ 912/913/914/ 915/917/920/ 921/922/923/ 940/941/942/ 943/944/945/ 946/947/949/ 951/954/955/ 960/961/970/ 972/973/976 Engines 113.940/941/ 942/943/944/ 945/946/960/ 961/962/963/ 965/967/968/ 969/980/981/ 982/984/986/ 992/995 Engines 113.987/ 988/991
BA01.45-P-1002-01B Self-tapping screw, oil pan to oil pan Thread not pretapped Nm 14 14 -
Thread pre-tapped Nm 10 10 10
BA01.45-P-1003-01B Oil drain screw to oil pan M14 Nm 30 30 30
FLUID SPECIFICATION ENGINE LUBRICATION

Number Designation Engine 112 except 112.916/953/975 Engines 113.940/941/ 942/943/960/ 961/962/969/ 982 Engines 113.944/ 944/980981/984 /984/ 986/991
BF18.00-P-1001-01H Engine oil Filling capacity with oil filter Liters 8.0 8.0 7.5
Filling capacity without oil filter Liters 7.5 - -
Specifications for Operating Fluids Sheet BB00.40-P-0229-01A BB00.40-P-0229-01A -
Sheet BB00.40-P-0229-03A BB00.40-P-0229-03A -
Sheet BB00.40-P-0229-05A BB00.40-P-0229-05A BB00.40-P-0229-05A
FLUID SPECIFICATION ENGINE LUBRICATION

Number Designation Engines 113.987/988/ 990/992/993/ 995
BF18.00-P-1001-01H Engine oil Filling capacity with oil filter Liters 8.5
Filling capacity without oil filter Liters 8.0
Specifications for Operating Fluids Sheet -
Sheet -
Sheet BB00.40-P-0229-05A
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1013-01A Sealant A 003 989 98 20
