Notes on application of sealant oil pan - AH01.45-P-0001-01C
Engine 112

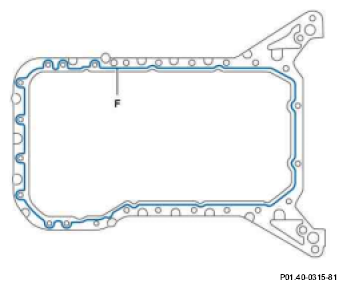

Application of sealant to top part of oil pan
The line drawn F marks the application of sealant.
Clean sealing surfaces, apply sealant only to the specified surfaces with a bead of 2.0 mm ± 0.5 mm.
The sealant must be applied within 10 minutes!
The silicone bead must not be spread. Only the silicone sealant listed in the section Repair products may be used.
Application of sealant to bottom part of oil pan
The line drawn F marks the application of sealant.
Clean sealing surfaces, apply sealant only to the specified surfaces with a bead of 2.0 mm ± 0.5 mm.
The sealant must be applied within 10 minutes!
The silicone bead must not be spread. Only the silicone sealant listed in the section Repair products may be used.
