Disconnect, connect engine wiring harness - AR01.00-P-2410R

ENGINE 113.963 in MODEL 230.475

ENGINE 113.992 in MODEL 230.474

ENGINE 113.990 in MODELS 211.076 /276

ENGINE 113.991 in MODEL 215.374

ENGINE 113.991 in MODEL 220.074

ENGINE 112.973 in MODEL 230.467

ENGINE 275.951 in MODEL 230.476

ENGINE 275.981 in MODEL 230.479

ENGINE 275.954 in MODEL 230.477

ENGINE 113.995 in MODEL 230.472

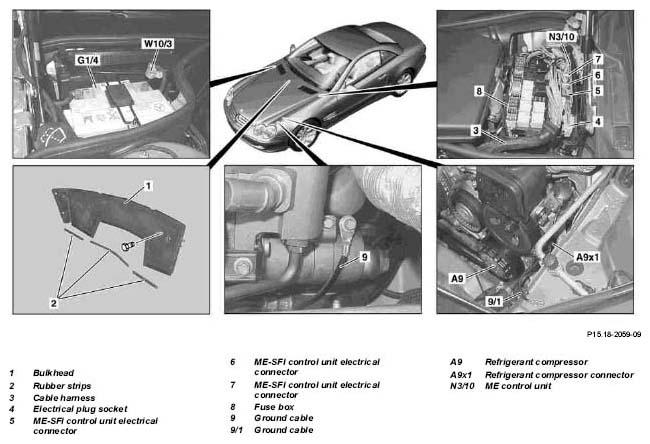

Illustrated on model 230.475

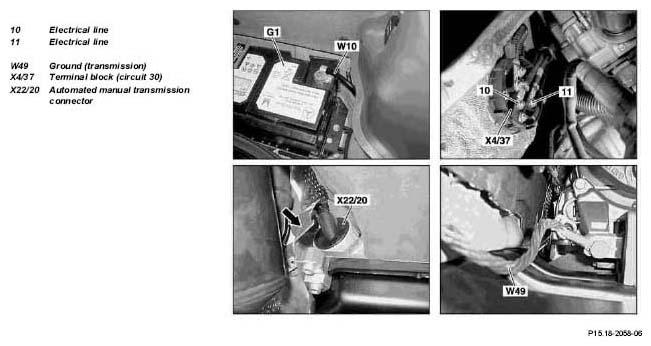

Illustrated on model 230.475

	Remove/install
	Risk of death  caused by vehicle slipping or toppling off the lifting platform.	Align vehicle between the columns of the lifting platform and position four support plates at the lifting platform support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of explosion  caused by oxyhydrogen gas. Risk of poisoning and caustic burns  caused by swallowing battery acid. Risk of injury  caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries	No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and safety glasses. Only pour battery acid into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
	Notes on battery		AH54.10-P-0001-01A
1	Detach ground line(s) at battery(ies)	Turn key in electronic ignition switch EIS into position "0". Key cannot be withdrawn. Vehicles with Keyless-Go code 889: Switch off engine, remove Keyless Go cards from the vehicle and keep outside the range of the transmitter.
		Model 211.076	AR54.10-P-0003T
		Model 211.276	AR54.10-P-0003TA
		Model 215, 220	AR54.10-P-0003I
		Model 230	AR54.10-P-0003R
2	Remove cover from fuse box (8)
3	Disconnect electrical plug socket (4)
4	Detach ME Control unit electrical plug sockets (5, 6, 7) at ME control unit (N3/10)	Open locking bar.
5.1	Remove firewall (1)	Model 230 Installation:  Install rubber strips (2) at firewall (1).
6	Unclip wiring harness (3) from fuse box (8) and splash wall.	Place wiring harness (3) onto engine.
7	Disconnect refrigerant compressor connector (A9x1) at refrigerant compressor (A9)
8.1	Disconnect ground line (9/1) to body	Vehicles without Active Body Control (Code 487) only.
8.2	Disconnect ground line (9) to tandem pump	Vehicles with Active Body Control (Code 487).
9	Open terminal block terminal 30 (X4/37)	Remove heat shield and protective cap for this purpose. Location of terminal block terminal 30 (X4/37): Right front transmission tunnel.
10	Dismount electrical line (10) and electrical line (11) from terminal block for terminal 30 (X4/37)
11	Disconnect automated manual transmission connector (X22/20)	By removing heat shield (arrow) and turning bayonet connection for pilot bushing 90° to the left.	AR27.10-P-0500-01A
			*BA27.40-P-1014-01A
12	Dismount transmission ground (W49) at rear engine mount
13	Install in the reverse order
14	Read out fault memory and erase if required	Stored fault entries which may be caused by disconnecting cables or by simulation during removal and installation or inspection operations, must be erased from the fault memory after work is completed.
	Connect up STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
		STAR DIAGNOSIS diagnosis system	*WH58.30-Z-1048-13A

Number	Designation		Transmission 722.6 except 722.660/661/66 2/663/666/674	Transmission 722.9
BA27.40-P-1014-01A	Bolt, heat shield to transmission housing	Nm	6	9

Number	Designation
WH58.30-Z-1048-13A	STAR DIAGNOSIS diagnosis system, Compact Passenger Car	6511 1801 00
