Termination of heater operation, function - GF83.70-G-2002A
MODEL 463 as of 1.6.94 with CODE (H12) Stationary heater Webasto Tele Thermo Top S
Function prerequisites:
Heater in controlled heater operation.
Terminating heater operation is accomplished by
- pressing the button "immediate heating/immediate ventilation" on the stationary heater timer (N34)
or
- pressing the switch on the associated RF remote control or
- automatic switch-off is accomplished upon exceeding the maximum operating time of 60 min.
Function

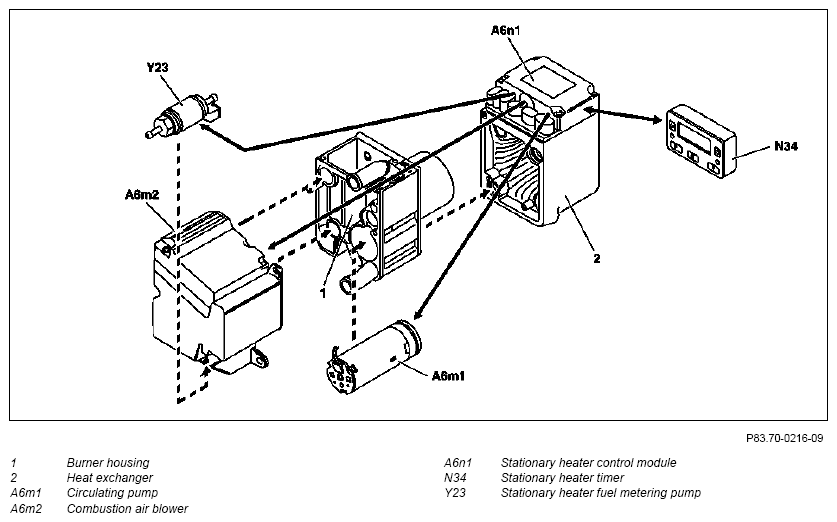

The controlled heater mode is terminated by switching off the fuel metering pump (Y23) followed by a shut-off delay . The green indicator lamp on the stationary heater timer (N34) goes out.
| Controlled heater operation | GF83.70-G-2004A | ||
| Shut-off delay, function | GF83.70-G-3034A | ||
| Stationary heater timer | GF83.70-G-4007A | ||
| Radio frequency remote control | GF83.70-G-4049A | ||
| Fuel metering pump | GF83.70-P-4008A |
