ME-SFI ignition ON function - GF07.61-P-3005AM

ENGINE 113.990 in MODEL 211, 219

ENGINE 113.991 in MODEL 215, 220

ENGINE 113.992 in MODEL 230 up to Model Year 2008

ENGINE 113.993 in MODEL 463 up to 31.5.12

ENGINE 113.995 in MODEL 230 up to Model Year 2008

Functions for the case of "ignition ON"

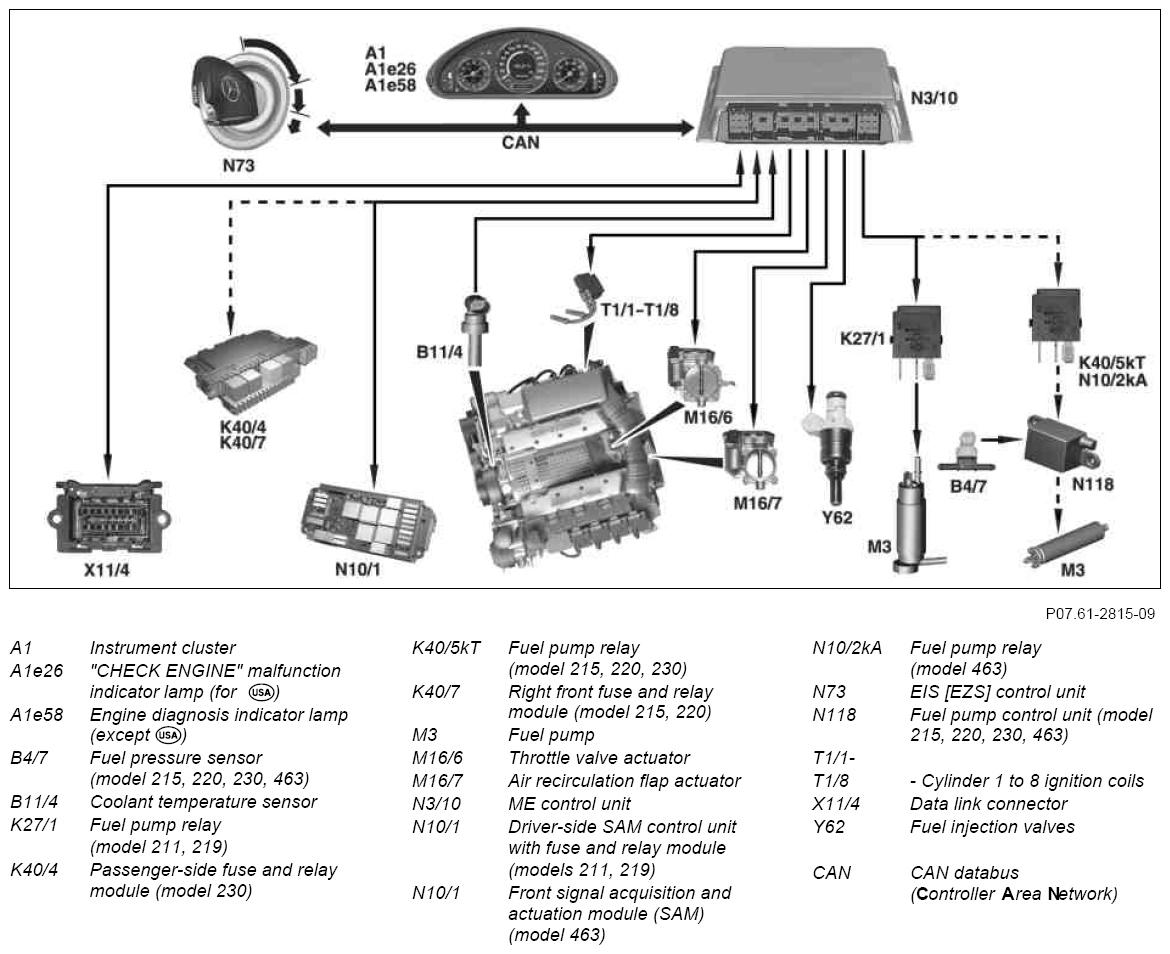

Fig 1: Identifying ME-SFI Ignition On Function Diagram

Courtesy of MERCEDES-BENZ USA

• Supplying voltage to the ME gasoline injection and ignition system via the relevant relay module or SAM
• Actuating the fuel pump for about 2 s as full running protection (only the first time "ignition ON")
• The engine diagnosis indicator lamp (in case of CHECK ENGINE indicator lamp) lights up in the instrument cluster for about 1 s (lamp check)
• Data exchange via the CAN databus (circuit 50 signal).
• The fault memory can be read out and cleared via the data link connector.
• Correction programming can be carried out with STAR DIAGNOSIS.
