Air pump relay location/task/design/function - GF14.30-P-3106AM
ENGINE 113.990/991/993
ENGINE 113.992/995 up to Model Year 8
| Air pump relay location | Model 211, 219 | GF14.30-P-3106-01TA | |
| Model 215, 220 | GF14.30-P-3106-01M | ||
| Model 230 | GF14.30-P-3106-01R | ||
| Model 463 | GF14.30-P-3106-01GA | ||
| Air pump relay task | The relay actuates the electric air pump for the air injection. | ||

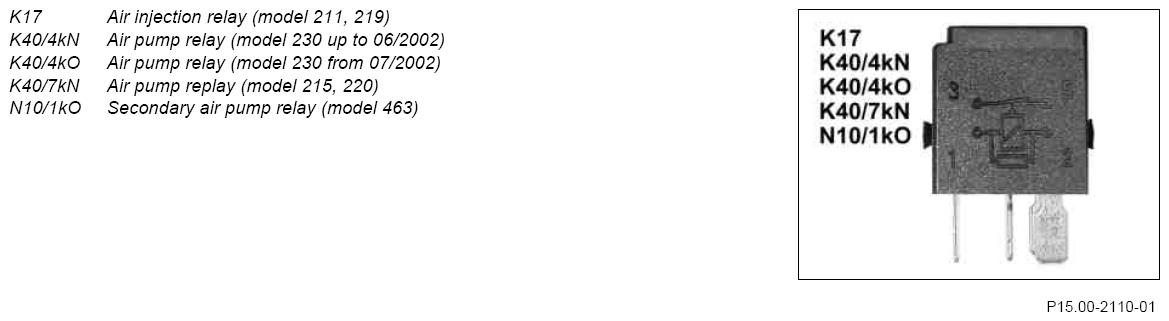

| Air pump relay design | The relay is a 4-pin plug relay. | ||
| Air pump relay function | When actuating by means of the ME control unit (N3/10) with a ground signal, the relay closes its power contact and thus supplies the electric air pump with voltage from "circuit 87". |
