Air pump relay location - GF14.30-P-3106-01GA

Model 463

The secondary air pump relay is located at the front at the SAM, at the top left of the passenger footwell.

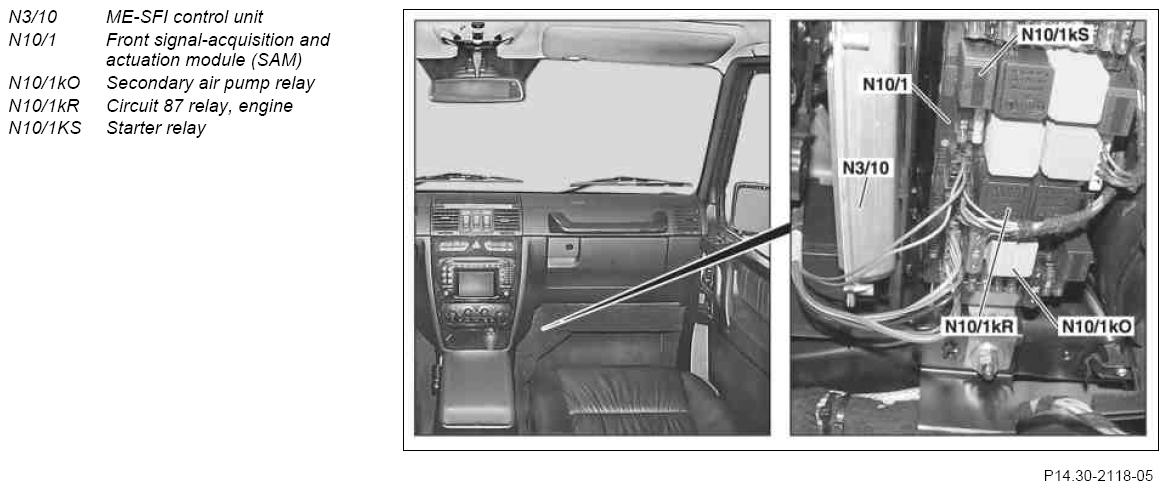

Fig 1: Identifying ME-SFI Control Unit, Front Signal-Acquisition And Actuation Module (Sam), Secondary Air Pump And Starter Relay
G07871119Courtesy of MERCEDES-BENZ USA
