Electrical system, design, as-built configuration - GF82.00-P-0800GB

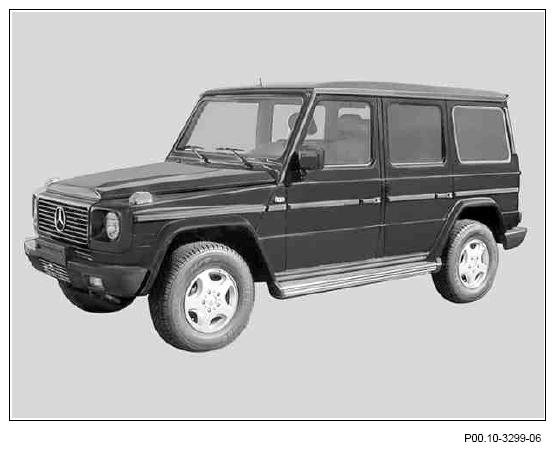

MODEL 463.243 /244 /245 /246 /247 /248 /249 /250 /254 /270 /271 /303 /309 /322 /323 /332 /333 /340 /341
| Battery, location | GF54.10-P-2000-01GB | ||
| Relay assignment of front signal acquisition and actuation module (SAM) | GF54.15-P-1258-01GB | ||
| Relay assignment of rear signal acquisition and actuation module (SAM) | GF54.15-P-1259-01GB | ||
| Front prefuse box, location | GF54.15-P-1260-01GB | ||
| Rear wiper relay, location | Model 463.243/244/245/246/247/249/270/271/322/323/332/333/340/341 Model 463.248 except code (979) Special protection version |
GF54.15-P-1515-01GB | |
| Central locking relay, location | GF54.15-P-1517-01GB | ||
| Interior fuse box, location | GF54.15-P-1530-01GB | ||
| Control units position | GF54.21-P-3100-01CB | ||
| Steering column module, location | GF54.21-P-4104-01GB | ||
| Overhead control panel control unit location | GF54.21-P-4105-01GB | ||
| Rear SAM control unit with fuse and relay module, location | GF54.21-P-4130-01GB | ||
| Front SAM control unit with fuse and relay module, location | GF54.21-P-4131-01GB | ||
| Data link connector, location | GF54.22-P-2100-01GB | ||
| Light switch module, location | GF54.25-P-4103-02GB | ||
| Switch modules on the roof, location | Model 463.243/244/245/246/247/248/249/270/271/322/323/332/333/340/341 | GF54.25-P-4107-01GB | |
| Transfer case switch, position | GF54.25-P-4115-01GB | ||
| Warning indicator, location | GF54.65-P-4104-02GB | ||
| Backup assist control unit, location | GF54.65-P-4110-01GB | ||
| Parktronic system (PTS) sensor unit, location | GF54.65-P-4115-01GB | ||
| Rear door control unit position | Model 463.243/245/246/248/249/270/271 / 323/333/341 | GF72.29-P-4102-01GB | |
| Front door control unit, location | GF72.29-P-4129-01GB | ||
| Tilting/sliding roof motor, location | Model 463.243/244/245/246/247/249/270/271/322/323/332/333/340/341 Model 463.248 except code (979) Special protection version |
GF77.20-P-4105-02GB | |
| Central locking (CL), location of components | GF80.20-P-0005-01GB | ||
| Infrared receiver, location | GF80.20-P-4101-01GB | ||
| Radio receiver, location | GF80.20-P-4102-01GB | ||
| Fuel filler flap CL motor, location | GF80.20-P-4140-01GB | ||
| Infrared remote control receiver unit, location | GF80.30-P-4009-02GB | ||
| Alarm siren, location | GF80.50-P-4001-01GB | ||
| ATA hood switch, location | GF80.50-P-4101-02GB | ||
| Inclination sensor, location | GF80.50-P-4105-02GB | ||
| Electronic ignition switch control unit, location | GF80.57-P-4102-02GB | ||
| Driving lamps sensor, location | GF82.10-P-1003-01GB | ||
| Trailer recognition control unit, location | GF82.10-P-2106-01GB | ||
| Door luminescent film converter, location | GF82.20-P-4030-01GB | ||
| Overhead control panel control unit, location | GF82.20-P-4101-01GB | ||
| Fanfare horns, location | GF82.25-P-0015-01GB | ||
| Special vehicle multifunction control unit, location | Model 463.248 with code (979) Special protection version with panic alarm system (PAS [GAS]) | GF82.25-P-4102-01GB | |
| Combination switch, location | GF82.30-P-2100-01GB | ||
| Rain sensor, location | GF82.30-P-4103-01GB | ||
| Wiper motor, location | GF82.30-P-4104-03GB | ||
| Rear-end door wiper motor, location | Model 463.243/244/245/246/247/249/270/271/303/322/323/332/333/340/341 Model 463.248 except code (979) Special protection version |
GF82.30-P-4106-03GC | |
| Washer nozzle, washer nozzle hose heater, location | GF82.35-P-3003-01MB | ||
| Antenna systems, location | GF82.62-P-3126-01GB | ||
| TV tuner location | GF82.60-P-3109-01GB | ||
| Global positioning system antenna, location | GF82.61-P-4106-01GB | ||
| Tweeter, location | GF82.62-P-0005-01GB | ||
| Center cockpit speaker, location | GF82.62-P-0006-01GB | ||
| Sound amplifier, location | Model 463.243/245/246/248/249/270/271/323/333/340/341 | GF82.62-P-3100-01GB | |
| Antenna amplifier module, location | GF82.62-P-3105-01GB | ||
| Side window antenna, location | Model 463.243/244/245/246/247/248/249/270/271/322/323/332/333/340/341 | GF82.62-P-3111-01GB | |
| FM/AM antenna amplifier, location | Model 463.243/244/245/246/247/248/249/270/271/322/323/332/333/340/341 | GF82.62-P-4101-01GB | |
| CD player with changer, location | GF82.64-P-3113-01GB | ||
| Hands-free system microphone, location | Model 463.243/244/245/246/247/248/270/271/ 322/323/332/333/340/341 | GF82.70-P-4102-01GB | |
| Antenna splitter, location | GF82.85-P-3107-01GB | ||
| Multifunction steering wheel button group, location | GF82.90-P-4000-01GB | ||
| TELE AID pushbutton, location | GF82.95-P-4101-01GB | ||
| TELE AID substitute antennas, location | GF82.95-P-4102-01GB | ||
| Emergency call system loudspeaker, location | GF82.95-P-4203-01GB | ||
| Rollover sensor, location | GF82.95-P-4206-01GB |
