Parktronic system (PTS) sensor unit, location - GF54.65-P-4115-01GB

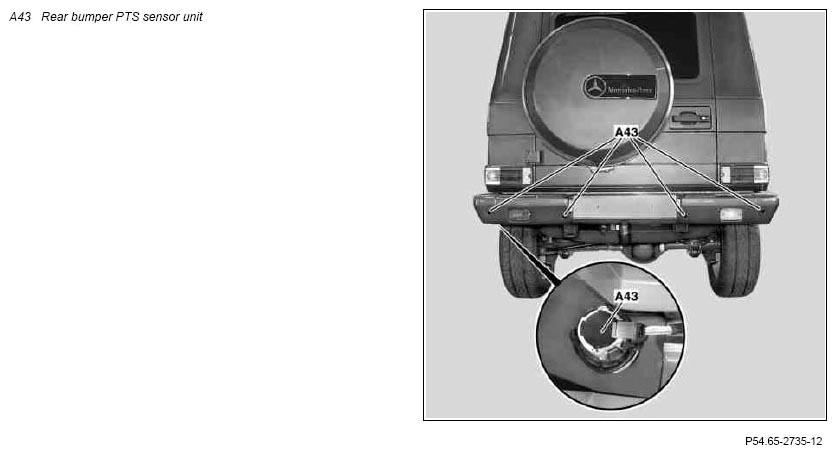

Fig 1: Identifying Rear Bumper PTS Sensor Unit

G07742129

Courtesy of MERCEDES-BENZ USA
