Removing and installing instrument cluster housing - AR54.30-P-6031P
WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 209
MODIFICATION NOTES
| 20.1.04 | Disconnect/connect/remove ground lead from battery |
| Removal/installation | |||
| 1 | Remove instrument cluster | AR54.30-P-6015P | |

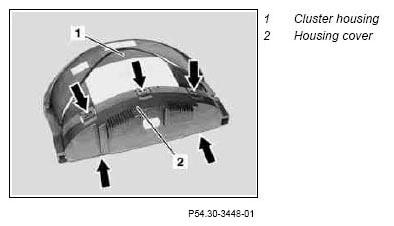

| 2 | Unclip retaining tabs (arrows) and remove housing cover (2) from cluster housing (1). | ||

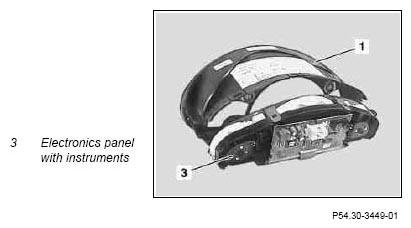

| 3 | Remove the PCB with its instruments (3) from the cluster housing (1) | ||
| 4 | Install in the reverse order |
