Remove/install instrument cluster - AR54.30-P-6015P

WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 209

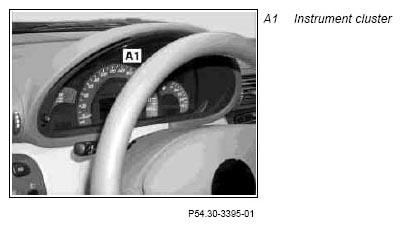

Fig 1: Identifying Instrument Cluster

Courtesy of MERCEDES-BENZ USA

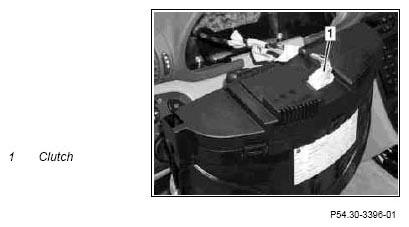

Fig 2: Identifying Clutch

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

24.5.06

"Disconnect/connect ground line on battery" removed

	Remove/install
1	Extend steering wheel fully and lower fully
2	Pull out instrument cluster (A1)	Do not damage the dashboard. Installation: Press the instrument cluster (A1) in evenly.	AR54.30-P-6015-01P
2	Pull out instrument cluster (A1)		Figure
3	Release connector (1) and disconnect
4	Install in the reverse order

Fig 3: Identifying Pulling Hook (140 589 02 33 00)

Courtesy of MERCEDES-BENZ USA
