Replace the oil pump chain - AR18.10-P-2140SX
WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 272
ENGINE 273
ENGINE 273
| Removing | ||
| 1 | Remove oil pump | |

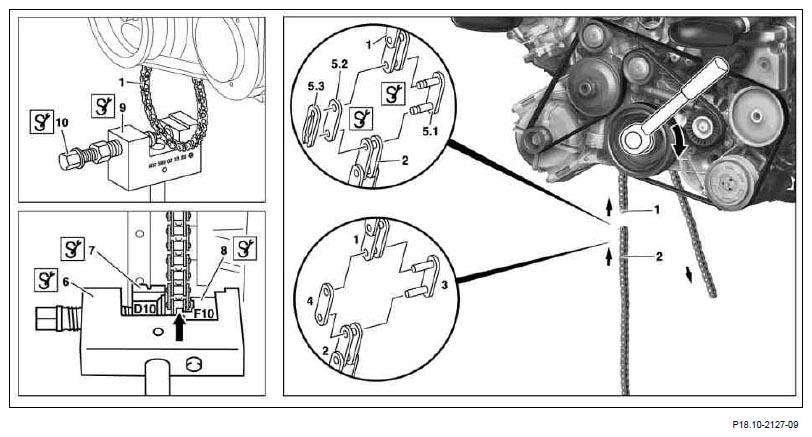

| 2 | Separate the old pump chain (1) | AR18.10-P-2140-01TX |
| Install | ||
| 3 | Draw in new oil pump chain (2) and rivet | AR18.10-P-2140-02TX |
| 4 | Install oil pump |
