Remove/install rear brake control cable - AR42.20-P-0525P
MODELS 203, 209.3 /4
| Remove/Install | |||
| 1 | Remove parking brake shoes | AR42.20-P-0530A | |

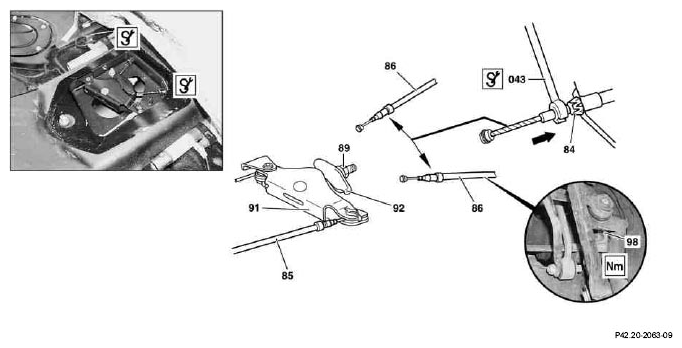

| 2 | Loosen adjusting bolt (89) at adjustment | ||
| 3 | Detach front brake cable (85) at intermediate lever (91) | ||
| 4 | Detach brake control cable (86) at equalizer arm (92) and at adjustment | Fig 2 | |
| 5 | Unscrew self-locking bolt (98) on wheel carrier. | ||
| *BA42.20-P-1002-01A | |||
| 6 | Remove brake control cable (86) | ||
| 7 | Install in the reverse order |
PARKING BRAKE
| Number | Designation | Model 203 | Model 209 | |
|---|---|---|---|---|
| BA42.20-P-1002-01A | Self-locking bolt, brake cable to rear wheel carrier | NM | 20 | 20 |
