Remove/install spring link and replacement of rubber mount - AR35.20-P-0114P

MODELS 203, 209.3 /4

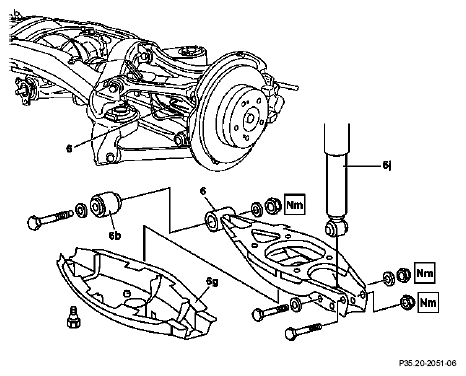

Fig 1: Identifying Spring Link And Rubber Mount Remove/Install Components

Figure/Item, etc.	Work instructions
	Risk of death  due to the vehicle slipping off or toppling off the lifting platform	Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
Installation	Replace all self-locking bolts and nuts
	Remove/install rear spring		AR32.20-P-0230P
	Spring link	Spring link to rear axle carrier.	*BA35.20-P-1001-01A
		Spring link to wheel carrier.	*BA35.20-P-1002-01A
	Vibration damper	Shock absorbers	*BA32.25-P-1003-03A
6	Spring link	When tightening the nuts and bolts, move rear axle shaft to approximately horizontal position.
6B	Track control arm rubber bushing	If necessary after checking: ↓
		Remove and instal spring link rubber mount	AR35.20-P-0114-01B
6 g	Spring link cover	Remove/install
6j	Vibration damper	Remove at spring link.

SPRING LINK

Number	Designation			Model 203	Model 209
BA35.20-P-1001-01A	Self-locking nut, track control arm to rear subframe	1st stage	NM	70	50
		2nd stage	∠ °	-	45
BA35.20-P-1002-01A	Self-locking nut, spring link to wheel carrier.		NM	120	120

REAR AXLE SHOCK ABSORBER

Number	Designation			Model 203	Model 209
BA32.25-P-1003-03A	Self-locking nut for attaching shock absorber to spring link		NM	55	50
		M10	NM	-	-

Fig 2: Identifying Extractor And Insertion Tools (129 589 01 43 00)
