Remove/install center console - AR68.20-P-2000V

MODEL 171.4

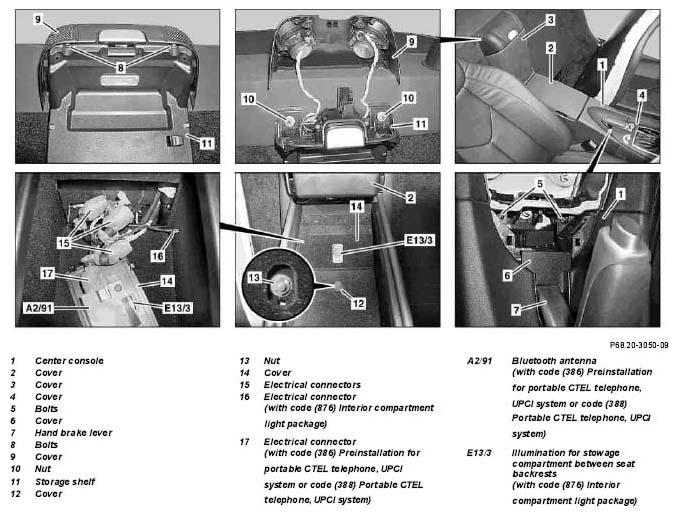

Fig 1: Identifying Center Console Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

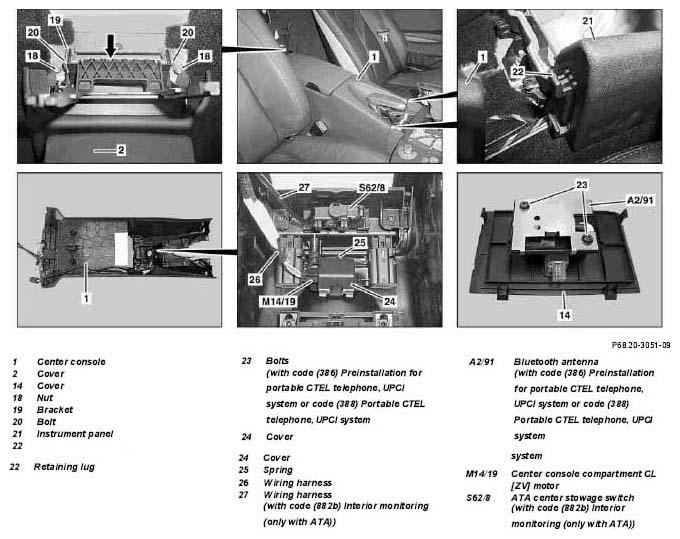

Fig 2: Identifying Center Console Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Detach cover (4) from center console (4) and lay toward front with lines connected		AR68.20-P-2350V
2	Unscrew bolts (5) and remove cover (6)
3	Release hand brake lever (7)	See Operating Instructions
4	Open cover (3) for stowage box in rear	See Operating Instructions
5.1	Remove cover (3) for stowage box in rear	Only when replacing center console (1).	AR68.20-P-5701VB
6	Unscrew bolts (8) and remove cover (9)	On vehicles with code (810) lay sound system cover (9) down to side with electrical lines connected.
7	Unscrew nut (10), remove stowage compartment (11) and lay down toward rear	Do not disconnect electrical connectors. Installation:  Before tightening nuts (10) close cover (3) and align stowage compartment (11).
8	Open cover (2) for stowage box in center console (1)	See Operating Instructions
9.1	Remove cover (2) for stowage box in center console (1)	Only when replacing center console (1).
		On vehicles with code (359) TELE AID emergency call system, lowcost or without code (386) Preinstallation for portable CTEL telephone, UPCI system or without code (387) Preinstallation for portable CTEL telephone, UPCI system USA/ Canada or without code (388) portable CTEL telephone, UPCI system or without code (498) Japanese version	AR68.20-P-5701V
		On vehicles with code (359) TELE AID emergency call system, lowcost or with code (386) Preinstallation for portable CTEL telephone, UPCI system or with code (387) Preinstallation for portable CTEL telephone, UPCI system USA/Canada or with code (388) portable CTEL telephone, UPCI system or with code (498) Japanese version Installation:  Check cover (2) for proper function, if necessary loosen bolts (20) on mount (19) and align cover (2) along mount (19, arrow) with mounting wedge.	AR68.20-P-5701VA
			Figure
10	Unclip cover (12) with suitable screwdriver and unscrew nut (13)
11	Unclip cover (14) with suitable screwdriver and disconnect all electrical connectors (15) located behind	Number of electrical connectors (15) depends on equipment
12.1	Disconnect electrical connector (16) from stowage compartment illumination between seat backrests (E13/3)	Only on vehicles with code (876) Interior compartment light package
13.1	Disconnect electrical connector (17) from Bluetooth antenna (A2/91)	Only on vehicles with code (386) Preinstallation for portable CTEL telephone, UPCI system or with code (388) Portable CTEL telephone, UPCI system
14	Close cover (2) for stowage box in center console (1)	See Operating Instructions
15	Loosen nut (18) until center console (1) can be removed together with bracket (19)
16	Loosen center console (1) at front from retaining lugs (22) for instrument panel and remove from vehicle toward rear	Installation:  Ensure that wiring harness are routed correctly below center console (1).
17.1	Unscrew bolts (20) and remove bracket (19) from center console (1)	Only when replacing center console (1).
18.1	Unscrew bolts (23) and remove Bluetooth antenna (A2/91) from cover (14)	Only when replacing center console (1) and on vehicles with code (386) Preinstallation for portable CTEL telephone, UPCI system or with code (388) Portable CTEL telephone, UPCI system
19.1	Open cover (24), unclip center stowage CL motor (M14/19) from center console (1), detach from spring (25) and expose wiring harness (26).	Only when replacing center console (1).
20.1	Unclip ATA center stowage switch (S62/8) from center console (1) and expose wiring harness (27)	Only when replacing center console (1) and on vehicles with code (882b) Interior monitoring (only with ATA)
21	Install in the reverse order

Fig 3: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
