Remove/install antenna - AR82.70-P-8951R

MODEL 230.4 except CODE (P99) "AMG Black Series" special model

Shown on vehicle with code (404) Left multi-contour seat

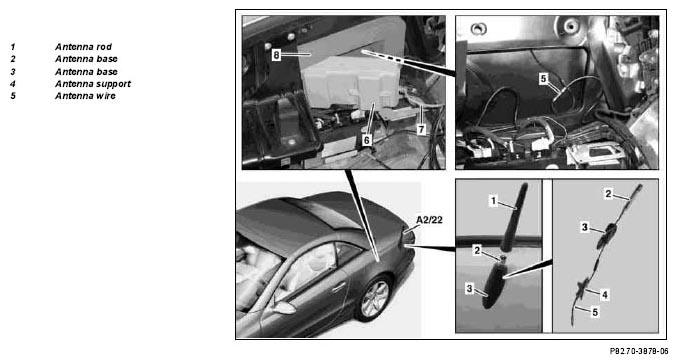

Fig 1: Identifying Antenna Components (Shown On Vehicle With Code (404) Left Multi-Contour Seat)

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Remove left side paneling in trunk		AR68.30-P-4800R
2	Remove overpressure reservoir (6), place to one side with pneumatic line (7) still connected and remove foam padding (8)	For vehicles with code (404) Left multi-contour seat or code (405) Right multi-contour seat	AR91.25-P-1650R
3	Remove safety clamp and disconnect telephone antenna connector of antenna line (5)
4	Unscrew antenna rod (1) of CTEL antenna (A2/22) at antenna base (2)
5	Remove nut and remove antenna base (2) together with antenna line (5)	Carefully guide out antenna line (5) so that the insulation on antenna line (5) is not damaged.
6	From the trunk, counterhold antenna support (4), remove antenna base (3) from outside and then remove antenna support (4) from inside
7	Install in the reverse order
