Remove/install overpressure reservoir for multi-contour backrest - AR91.25-P-1650R
MODEL 230.4
- with CODE (404) Left multi-contour seat
- with CODE (405) Right multi-contour seat
| Remove/install | |||
|---|---|---|---|
| 1 | Remove left side paneling in trunk | AR68.30-P-4800R | |

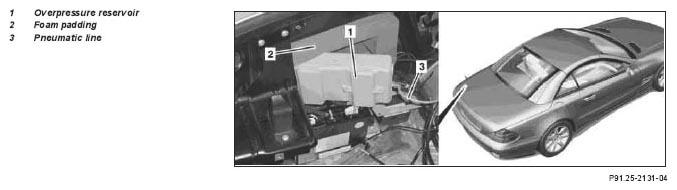

| 2 | Pull overpressure reservoir (1) out of foam padding (2) | ||
| 3 | Detach pneumatic line (3) from overpressure reservoir (1) using a suitable tool and detach | ||
| 4 | Install in the reverse order |
