Remote trunk release (RTR), function - GF80.20-P-0006S: Notes
MODEL 215, 220

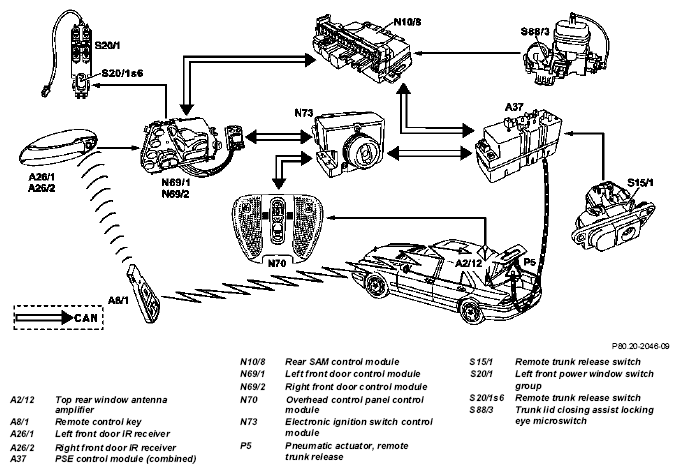

Remote trunk release (RTR), function illustrated on model 220
The following functions are described in the function description:
- Opening the trunk lid with the remote control key
- Opening the trunk lid with the remote trunk lid release switch (S20/1s6) on the driver's door
- Manual opening the trunk lid by pressing the lock cylinder in the trunk lid lock
- Trunk lid power locking feature
The state of the central locking system determines whether the trunk lid can be opened with the individual features. Regardless of this the trunk lid can be locked or unlocked with the manual key .
| Opening trunk lid with remote control key, function | GF80.20-P-3010S | ||
| Locking/unlocking trunk lid with manual key, function | GF80.20-P-3011S | ||
| Opening trunk lid with interior switch, function | GF80.20-P-3012S | ||
| Manually opening trunk lid, function | GF80.20-P-3013S | ||
| Central locking (CL), function | GF80.20-P-0005S | ||
| Trunk lid power locking, function | GF80.40-P-3002S | ||
| Remote trunk release (RTR), location of components | GF80.20-P-0006-01S |
