Remove, install oil pressure relief valve - AR18.10-P-5031GV

ENGINE 112

ENGINE 112.945 in model 463.209 /232 /233 /244 /245 /250

ENGINE 113.962 in model 463.206 /240 /241 /247 /248 /249 /254

ENGINE 113.982 in model 463.243 /246

ENGINE 113 in model 129, 163, 202, 203, 208, 209, 210, 211, 215, 220, 230

Shown on engine 112

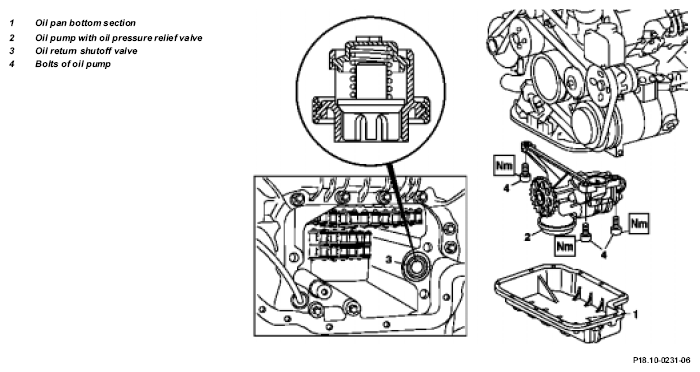

Fig 1: Identifying Oil Pressure Relief Valve Components - Shown On Engine 112

	Remove/install
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
1	Remove oil pan bottom section (1)
		Engine 113.988 in model 203.076/ 276 Engine 113.989 in model 171.473	AR01.45-P-7555AC
		Engine 112.975, 113.948 /966 in model 220, engine 112.917 in model 211.080/280 Engine 112.954 in model 211.082 /282 Engine 113.969 in model 211.083 /283	AR01.45-P-7555IW
		Engine 112.912 in model 203.061 /261, 209.361 /461 with transmission 722.6, 716.6, engine 112.946 in model 203.064 /264 with transmission 722.6 Engine 112.955 in model 209.365/ 465 with transmission 722.618 Engine 112.961 in model 203.065/ 265 with transmission 722.6 Engine 113.968 in model 209.375/ 475 with transmission 722.6 Engine 112.913 in model 211.061 with transmission 716.6, 722.6 Engine 112.949 in model 211.065 with transmission 722.6 Engine 113.967 in model 211.070 with transmission 722.6 Engine 113.987 in model 209.376/ 476 with transmission 722.636	AR01.45-P-7555PV
		Engine 112 in model 203.081 /084 /281 /284	AR01.45-P-7555PW
		Engine 113.963 in model 230.475 Engine 113.992 in model 230.474 Engine 113.995 in model 230.472 Engine 113.990 in model 211.076 /276 Engine 113.991 in model 215.374, 220.074/ 174	AR01.45-P-7555R
		Engine 112.973 in model 230	AR01.45-P-7555RA
		Engine 112.942 in model 163.154 Engine 112.970 in model 163.157 Engine 113.942 in model 163.172	AR01.45-P-7555V
		Engine 112.945 in model 463.209/ 232/ 233/ / 250 Engine 112 in model 129, 170, 202, 208, 210, engine 113.962 in model 463.206 /240 /241 /247 /248 /249 /254 Engine 113 in model 129, 202, 208, 210 Engine 113.982 in model 463.243/ 246 Engine 112 except 112.975 in model 220 Engine 113 except 113.966 /948 in model 220 Engine 113.993 in model 463.270/ 271	AR01.45-P-7555VA
		Engine 113.965 in model 163.175 Engine 113.981 in model 163.174	AR01.45-P-7555VE
2.1	Remove oil pan top section	Model 211.061 /065/ 070 Model 230.472/ 474/ 475	AR01.45-P-7500TV AR01.45-P-7500R
3	Remove oil pump (2)	Installation:  Ensure oil return flow check valve (3) is correctly installed. Clean the oil pump strainer. Fill the oil pump with engine oil before installing, so that oil is delivered at the initial startup.
		Engine 112.945 in model 463.209/ 232/ 233/ / 250 Engine 112 in model 210, 208, 202, 170, 163, 129 Engine 113.962 in model 463.///254 Engine 113 in model 210, 208, 202, 163, 129, engine 113.982 in model 463.243 /246 Engine 112 except 112.975 in model 220 Engine 113 except 113.948 /966 in model 220	AR18.10-P-6020B
		Engine 111.951 in model 203.035 /235 /735, engine 111.955 in model 203.045 /245 /745, engine 112.912 in model 203.061 /261, 209.361 /461 Engine 112.946 in model 203.064/ 264 Engine 112.961 in model 203.065/ 265 Engine 113.968 in model 209.375 /475 Engine 112.913 in Model 211.061 Engine 112.949 in model 211.065 Engine 113.967 in model 211.070 Engine 113.987 in model 209.376 /476 Engine 112.955 in model 209.365 /465 Engine 112.917 in model 211.080 /280 Engine 112.954 in model 211.082 /282 Engine 113.969 in model 211.083 /283 Engine 113.988 in model 203.076/ 276 Engine 113.989 in model 171.473	AR18.10-P-6020PV
		Engine 112 in model 203.081 /084 /281 /284, 220.087/187 Engine 113 in model 220.083 /084 /183 /184	AR18.10-P-6020PW
		Engine 113.963 in model 230.475 Engine 113.992 in model 230.474 Engine 113.995 in model 230.472 Engine 113.990 in model 211.076 /276 Engine 113.991 in model 215.374, 220.074/ 174 Engine 113.993 in model 463.270/ 271	AR18.10-P-6020R
		Engine 112.973 in model 230	AR18.10-P-6020RA
4	Replace oil pressure relief valve	The oil pressure relief valve is supplied together with the oil pump for repair purposes. It is therefore not necessary to disassemble the oil pump.
5	Install in the reverse order
6	Risk of accident  caused by vehicle starting off by itself when engine is running. Risk of injury  caused by contusions and burns during starting procedure or when working near the running engine Run engine and inspect for leaks	Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not grasp hot or rotating parts.	AS00.00-Z-0005-01A
