Remove/install oil pump - AR18.10-P-6020R

ENGINE 113.963 in MODEL 230.475

ENGINE 113.992 in MODEL 230.474

ENGINE 113.990 in MODEL 211.076 /276

ENGINE 113.991 in MODEL 215.374, 220.074 /174

ENGINE 113.993 in MODEL 463.270 /271

ENGINE 113.995 in MODEL 230.472

Shown on engine 113.992

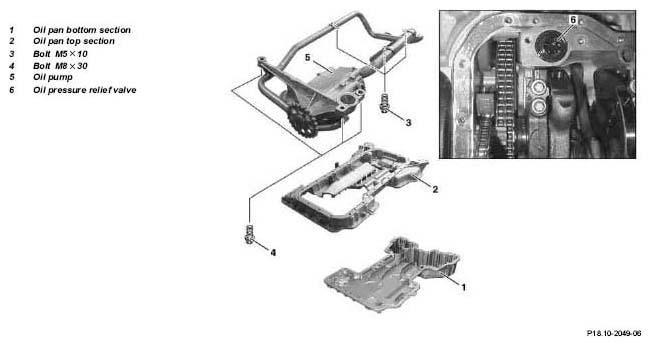

Fig 1: Identifying Oil Pump Remove/Install Components - Shown On Engine 113.992

Shown on engine 113.992

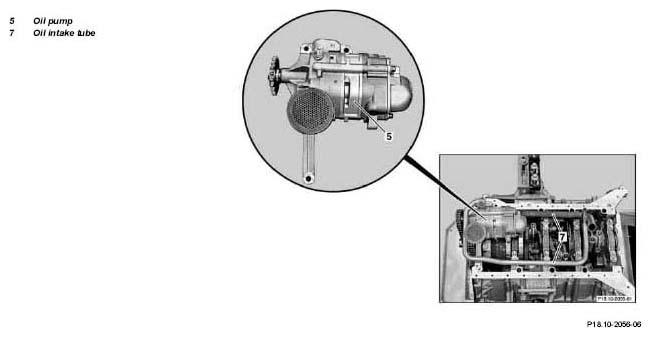

Fig 2: Identifying Oil Pump Remove/Install Components - Shown On Engine 113.992

	Remove/install
1	Remove oil pan top section(2)	Engine 113.963 in M 230.475 Engine 113.992 in model 230.474 Engine 113.995 in model 230.472 Engine 113.991 in models 215.374, 220.074/174	AR01.45-P-7500R
		Engine 113.990 in model 211.076 /276	AR01.45-P-7500TV
		Engine 113.993 in model 463.270/ 271	AR01.45-P-7500GX
2	Remove oil intake tube (7)	Unscrew bolts M5 x 10 (3) for this purpose.
3	Unscrew bolts M8_30 (4)		*BA18.10-P-1001-01B
4	Remove oil pump (5)	Installation:  Check that the oil pressure relief valve (6) is correctly seated, clean strainer of oil pump (5) Before installing, fill oil pump (5) with engine oil, so that it delivers oil immediately when first started. On engines 113.990 /991 /992 /993 /995 pay attention to the version of the oil pump (5) when exchanging it.
5	Install in the reverse order
