Remove/install instrument panel lower section on passenger side with glove box - AR68.10-P-1508Q
MODEL 209

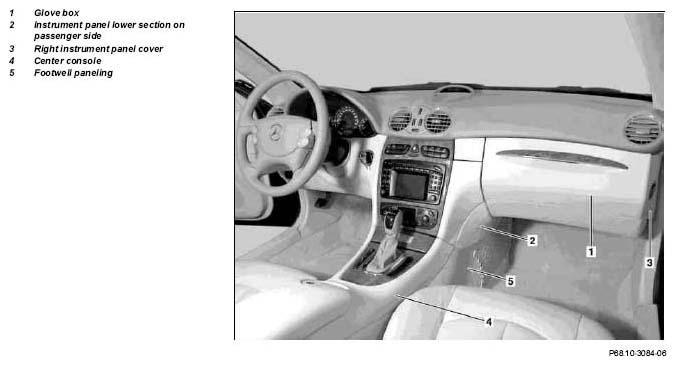

Fig 1: Identifying Instrument Panel Lower Section On Passenger Side With Glove Box Components (1 Of 4)
Fig 2: Identifying Instrument Panel Lower Section On Passenger Side With Glove Box Components (2 Of 4)
Fig 3: Identifying Instrument Panel Lower Section On Passenger Side With Glove Box Components (3 Of 4)
Fig 4: Identifying Instrument Panel Lower Section On Passenger Side With Glove Box Components (4 Of 4)
MODIFICATION NOTES
| 29.5.06 | "Disconnect/connect battery ground line" removed |
| Remove/install | |||
|---|---|---|---|
| 1 | Remove cover below instrument panel | AR68.10-P-1520P | |
| 2 | Open glove box compartment door | ||
| 3 | Remove cover on right side of instrument panel (3) | ||
| Figure | |||

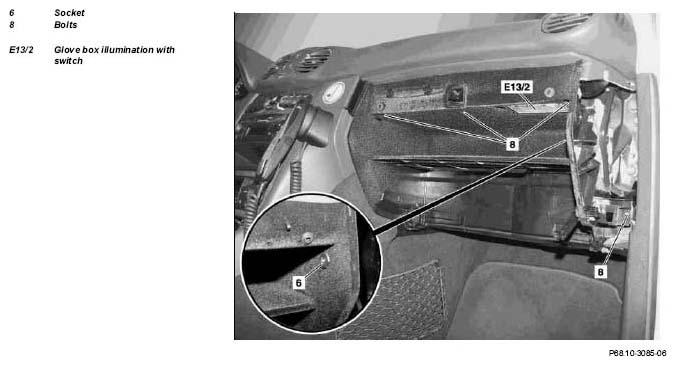

| 4 | Press circlip of socket (6) toward inside | ||
| 5 | Unclip socket (6) for glove compartment (1) | ||
| 6 | Remove CD changer | With code 819 6-disk CD changer | AR82.64-P-7507P |
| 7 | Remove bolts (8) | ||
| 8 | Remove center console cover (10) | AR68.20-P-2350Q | |
| 9 | Remove center console (4) | Model 209 without code P98 Black Series | AR68.20-P-2000Q |
| Model 209 with code P98 Black Series | AR68.20-P-2000QBS | ||
| 10.1 | Loosen COMMAND operating, display and controller unit (A40/3) | up to 31.5.04 with code 352 COMMAND operating and display system, with code 498 Japanese version |
AR82.85-P-7472Q |
| as of 1.6.04 with code 498 Japanese version, with code 527 COMMAND APS (with navigation), with code 530 COMMAND APS USA (with navigation) |
AR82.85-P-7472QA | ||
| 10.2 | Loosen radio | up to 31.5.04 with code 756 Radio MB Audio 10 CD with VK/RDS |
AR82.60-P-7502Q |
| as of 1.6.04 | AR82.60-P-7502QA | ||
| up to 31.5.04 with code 353 Audio 30 APS | AR82.61-P-7412P | ||
| as of 1.6.04 with code 525 Radio MB Audio 50 APS |
AR82.61-P-7412QA | ||

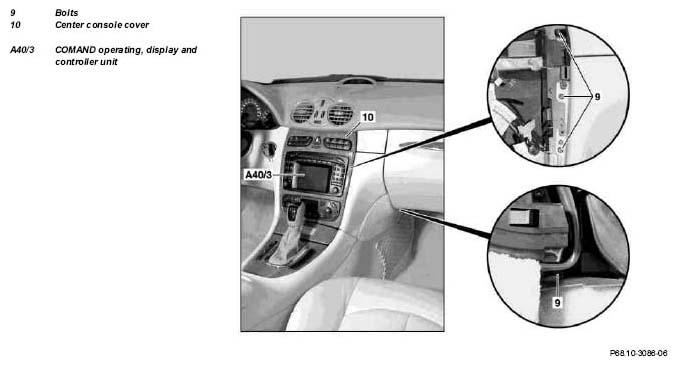

| 11 | Remove bolts (9) | ||
| 12 | Partially pull out instrument panel lower section on passenger side (2) with glove compartment (1) | ||
| 13 | Detach coupling at glove compartment illumination with switch (E13/2) | ||
| 14.1 | Disconnect connector for ATA glove compartment switch | With code 551 Anti-theft alarm system (ATA) | |
| 14.2 | Disconnect connector from glove compartment CL actuator | Model 209.4 | |

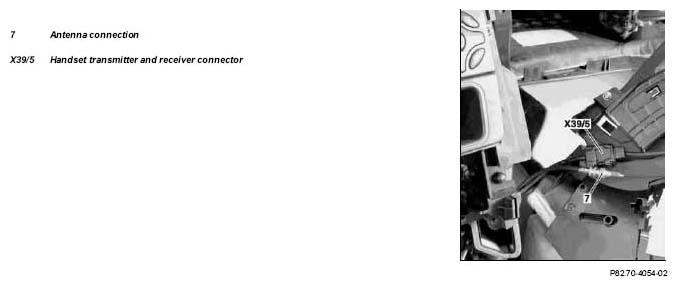

| 14.3 | Detach handset transmitter and receiver connector (X39/5) and antenna connection (7) | With code 854 MB cell phone | |
| 15 | Remove instrument panel lower section (2) on passenger side with glove compartment (1). | ||
| 16 | Install in the reverse order |
