Remove/install cover below instrument panel (right) - AR68.10-P-1520P

MODEL 203, 209

Shown in model 203.0

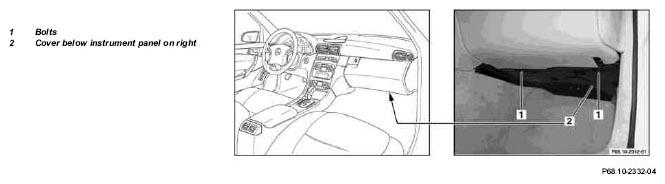

Fig 1: Identifying Cover Below Instrument Panel Components

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Unscrew screws (1)
2	Remove cover below right instrument panel (2)	Installation:  Ensure correct seat of air duct.
3	Install in the reverse order
