Removing and installing keyless go antenna - AR82.62-P-8000QB

MODEL 209 with CODE (889) Keyless Go

Antenna in the door

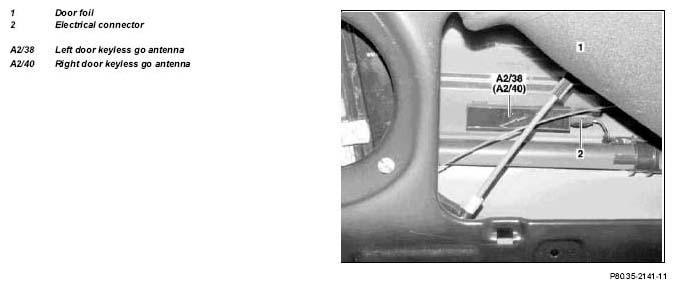

Fig 1: Identifying Keyless Go Antenna Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

MODIFICATION NOTES

11.2.04

Disconnect/connect/remove ground lead from battery

	Remove/install
1	Remove door lining		AR72.10-P-1000Q
2	Pull off door foil (1) at bottom left and attach using adhesive tape	Carefully detach door foil (1) and check for damage, replace if necessary. Installation:  Check butyl cord of door foil (1), if necessary fit new butyl cord. Press door foil (1) on with roller. Installation:  Carefully press on door foil (1) to ensure there are no leakages.
		Sealing cord	*BR00.45-Z-1086-01A
		Roller	Fig 2
3	Remove protective strip on front door		AR88.80-P-6600P
4	Remove screws of left door Keyless Go antenna (A2/38) or right door Keyless Go antenna (A2/40)
5	Slide left door Keyless Go antenna (A2/38) or right door Keyless Go antenna (A2/40) and remove
6	Disconnect electric connector (2)
7	Install in the reverse order
8	Perform function check

Fig 2: Identifying Roller (168 589 05 63 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1086-01A	Sealing cord	A 005 989 12 71 10
