Remove/install front door molding - AR88.80-P-6600P

MODEL 203, 209

Shown in model 203.0

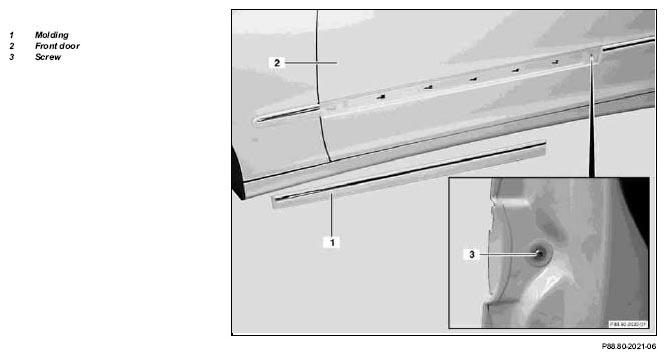

Fig 1: Identifying Front Door Molding Components

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Unscrew screw (3)
2	Lift guard molding (1) at rear end of door (2) and pull toward rear out of retaining clips	Avoid damaging paint.
3	Install in the reverse order
