Remove/install front door lining - AR72.10-P-1000Q
MODEL 209
MODIFICATION NOTES
| 4.2.04 | "Disconnect/connect battery ground line" removed |
| Remove/install | |||
|---|---|---|---|

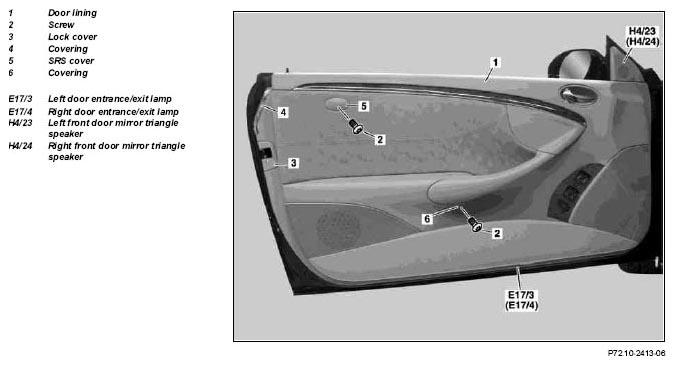

| 1 | Unclip SRS covering (5) | On vehicles with sidebag | |
| 2 | Unscrew bolt (2) | On vehicles with sidebag | |
| 3 | Unclip covering (6) | On vehicles with sidebag | |
| 4 | Unscrew bolt (2) | ||
| 5 | Remove bolts (7) | ||
| 6 | Remove covering (4) | ||
| 7 | Unscrew bolt from lock cover (3) | ||
| 8 | Remove lock cover (3) | ||
| 9 | Remove left door mirror triangle speaker (H4/23) and right door mirror triangle speaker (H4/24) from mirror triangle | AR82.62-P-7850Q | |
| 10 | Remove left door entrance/exit lamp (E17/3) and/or right door entrance/exit lamp (E17/4) | ||

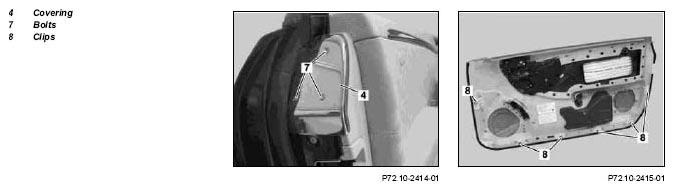

| 11 | Press door lining (1) off in areas of clips (8) | Fig 3 | |
| 12 | Pivot door lining (1) slightly and press off of sealing rail upward | ||
| 13 | Unhook control cable from inner door actuation | ||
| 14 | Disconnect electrical line on door lining (1) for left door control unit and right door control unit from door lining (1). | ||
| 15 | Remove door lining (1) | ||
| 16 | Install in the reverse order |
