Remove/install front door speakers in mirror triangle - AR82.62-P-7850Q

MODEL 209

Shown on model 209.3

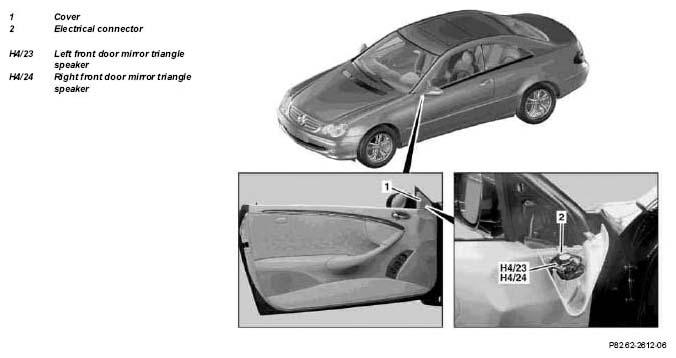

Fig 1: Identifying Front Door Speakers In Mirror Triangle Components - Shown On Model 209.3

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

MODIFICATION NOTES

11.2.04

Disconnect/connect/remove ground lead from battery

	Removal/installation
1	Unclip cover (1) at mirror triangle	Firstly, pry off cover (1) at top using mounting wedge and then remove downwards.
			Fig 2
2	Disconnect electric connector(2)
3	Unclip left front door mirror triangle speaker (H4/23) or right front door mirror triangle speaker (H4/24) and remove from cover(1)
4	Install in the reverse order
5	Perform a function test

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
