Remove/install washer fluid reservoir of windshield washer system - AR82.35-P-6000Q
MODEL 209 except CODE (P98) Black Series

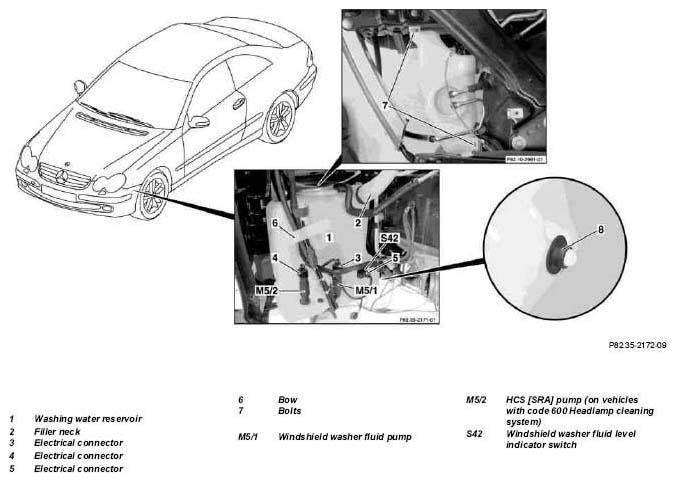

Shown on model 209.3 with code 600 Headlamp cleaning system and with code 875 Heated windshield washer system
MODIFICATION NOTES
| 2.2.06 | Repair method has been revised | Step 3 |
| Remove/install | |||
|---|---|---|---|
| 1 | Remove finder liner in front fender | AR88.10-P-1300P | |
| 2 | Pull filler neck (2) out of washer fluid reservoir (1) | ||
| Risk of injury to skin and eyes caused by scalding from contact with hot coolant spray. Risk of poisoning caused by swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| 3 | Use clamps to clamp off both coolant hoses on the heater, release the hose clamps and detach both coolant hoses of the washer fluid heater | For vehicles with code 875 Heated windshield washer system. | |
| Fig 2 | |||
| 4 | Unclip bracket (6) | ||
| 5 | Remove windshield washer fluid pump (M5/1) and place to one side with lines attached | ||
| 6 | Remove HCS [SRA] pump (M5/2) and place to one side with lines attached | For vehicles with code 600 Headlamp cleaning system. | |
| 7 | Detach electrical connector (5) from windshield washer fluid level indicator switch (S42) | ||
| 8 | Remove bolts (7) | ||
| 9 | Take off washer fluid reservoir (1) | ||
| 10 | Remove heater unit | Only when replacing the washer fluid reservoir (1) for vehicles with code 875 Heated windshield washer system. | |
| 11 | Remove windshield washer fluid level indicator switch (S42) | Only when replacing the washer fluid reservoir (1). | |
| 12 | Install in the reverse order | ||
| 13 | Correct windshield washer system fluid level | ||
| Check windshield washer system fluid level and correct if necessary | AP82.35-P-8210P | ||
| 14 | Inspecting cooling system for leaks | For vehicles with code 875 Heated windshield washer system | |
| Engine 112, 113, 271, 612, 646 | AR20.00-P-1010P | ||
| Engine 156 | AR20.00-P-1010TMG | ||
| Engine 272, 273 | AR20.00-P-1010QB |
