Remove/install additional turn signal lamp - AR82.25-P-4726QA

MODEL 209 as of 29.3.04

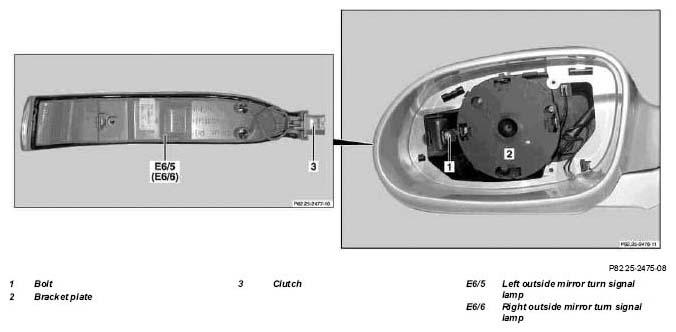

Fig 1: Identifying Additional Turn Signal Lamp Components - Model 209 As Of 29.3.04

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

MODIFICATION NOTES

24.5.06

"Disconnect/connect ground line on battery" removed

	Remove/install
1	Remove mirror glass		AR88.70-P-9020Q
2	Remove bolt (1)	Press outer retaining plate (2) toward front.
3	Slide left outside mirror turn signal lamp (E6/5), right outside mirror turn signal lamp (E6/6) outwards and remove	Do not swivel left outside mirror turn signal lamp (E6/5) or right outside mirror turn signal lamp (E6/6). Risk of breaking at coupling (3).
4	Install in the reverse order
