Removing and installing multi-joint hinge - AR72.10-P-2110N

MODEL 215

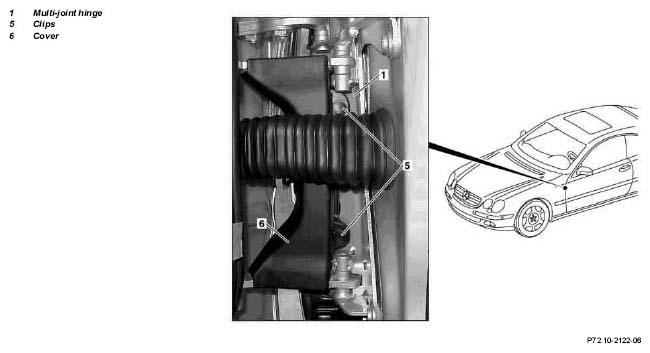

Fig 1: Identifying Multi-Joint Hinge Clips And Cover

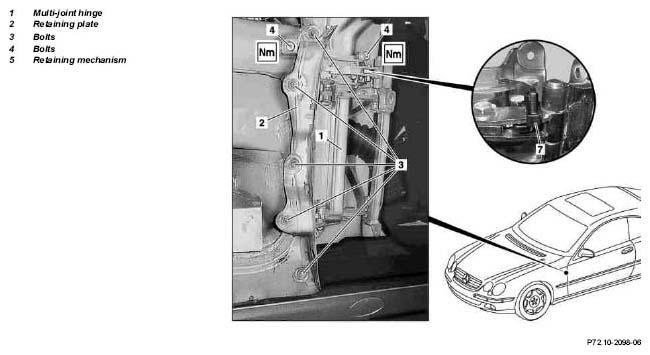

Fig 2: Identifying Multi-Joint Hinge, Bolts And Retaining Mechanism

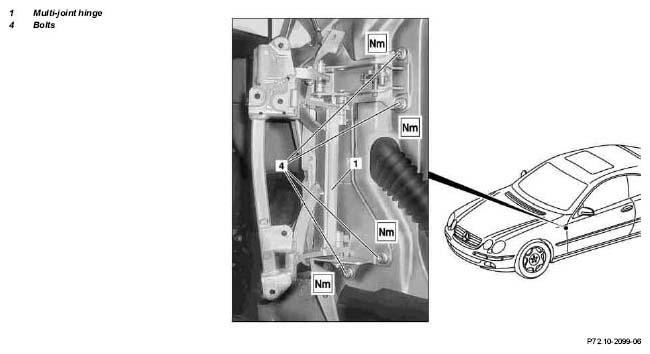

Fig 3: Identifying Multi-Joint Hinge And Bolts

	Removal, installation
1	Remove front door		AR72.10-P-0500N
2	Remove front fender		AR88.10-P-1000N
3	Unclip clips (5) from multi-joint hinge (1) and remove cover (6)
4	Unbolt bolts (3) from retaining plate (2) and remove retaining plate (2)
5	Unbolt bolts (4) from multi-joint hinge (1) and remove multi-joint hinge (1)		*BA72.10-P-1001-01E
			Figure
6	Install in reverse order	Installation  : Remove retaining mechanism (7) when installing new component.
7	Check front fender and front door gap dimensions	Hood, door and cover gap dimensions If no exact fit: ↓	AR60.00-P-0700-01N
		Adjust front door	AR72.10-P-0550N

FRONT DOOR TIGHTENING TORQUE

Number	Designation		Model 215
BA72.10-P-1001-01E	Screw for door hinge on A-pillar	Nm	32

Fig 4: Identifying Torx Bit Set (000 589 01 10 00)
